SGGP.25.4.A.02 GPS/GLONASS/GALILEO 25*25*4mm SMD Mount Patch

SGGP.25.4.A.02

SGGP.25A Series
SMD Mount Passive GPS-GLONASS-GALILEO Patch Antenna
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMD
Delivered on Tape and Reel and mounted during standard reflow process
25*25*4mm

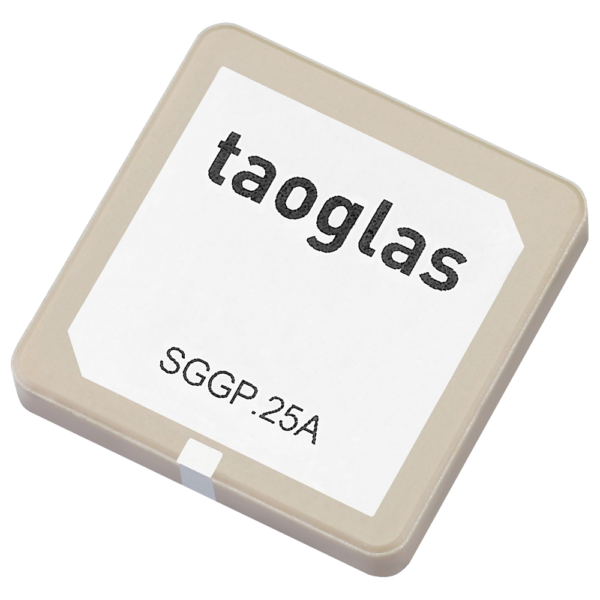

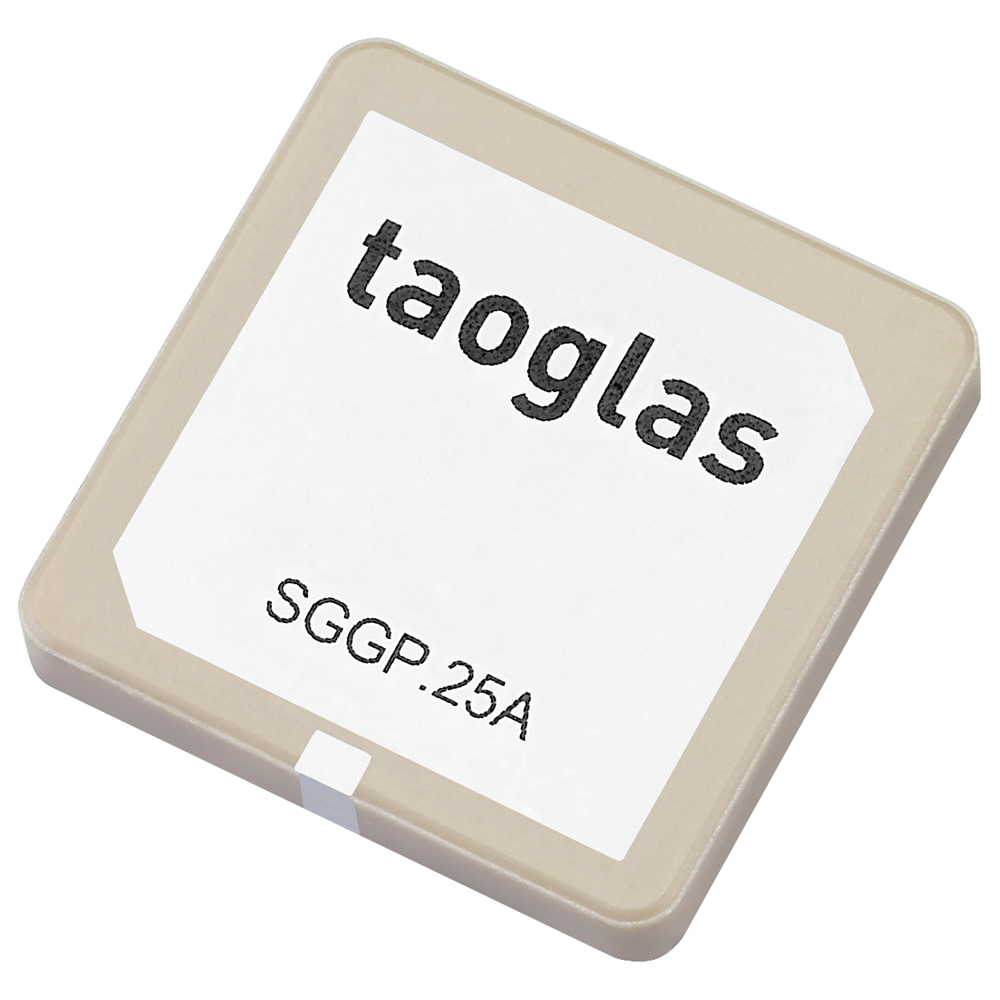

Image SGGP.25.4.A.02

SGGP.25.4.A.02

SGGP.25.4.A.02 GPS/GLONASS/GALILEO 25*25*4mm SMD Mount Patch

Overview

This ceramic 25*25*4mm GPS/GLONASS/GALILEO patch antenna is mounted via SMT process and has been pre-tuned for a 50*50mm ground plane. Custom part no’s tuned for different ground-plane or layout positions and taking into account the specific conditions in your device can be created and supplied by Taoglas.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 3.66
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz - 1602MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Reel
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 25
Width (mm) 25
Height (mm) 4
Weight (g) 9.5
