SPKR.10.4.A – 4 Ohm 10 Inch Round Subwoofer Speaker 80W

SPKR.10.4.A

4 Ohm Impedance
Rated Input Power 80W RMS
Max Input Power 160W Peak
Sensitivity 86 dB 1W @ 1m
Dimensions: 257x257x117mm
Connector: Packard Electric 12052832
RoHS & Reach Compliant

Image SPKR.10.4.A

SPKR.10.4.A

SPKR.10.4.A – 4 Ohm 10 Inch Round Subwoofer Speaker 80W

Overview

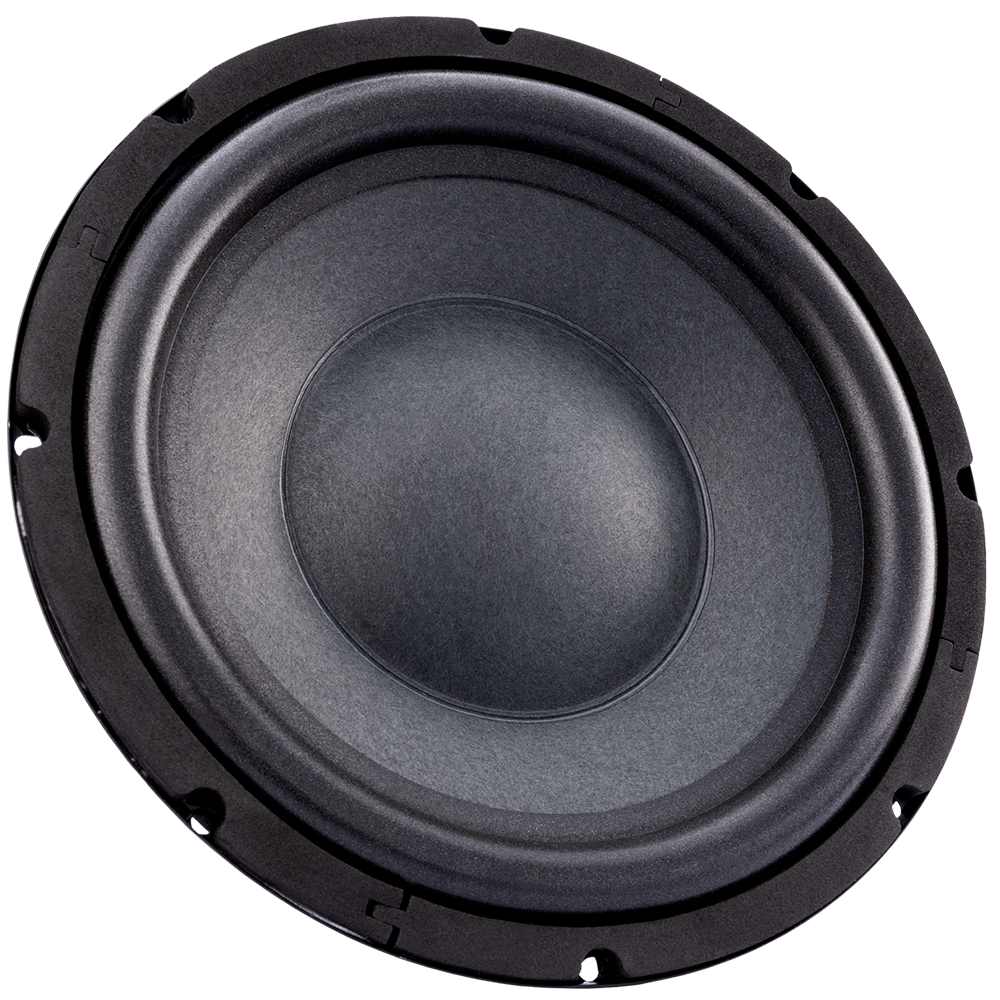

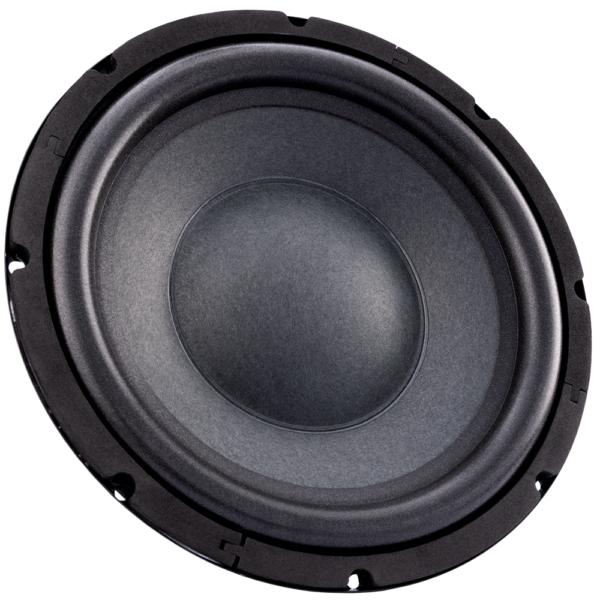

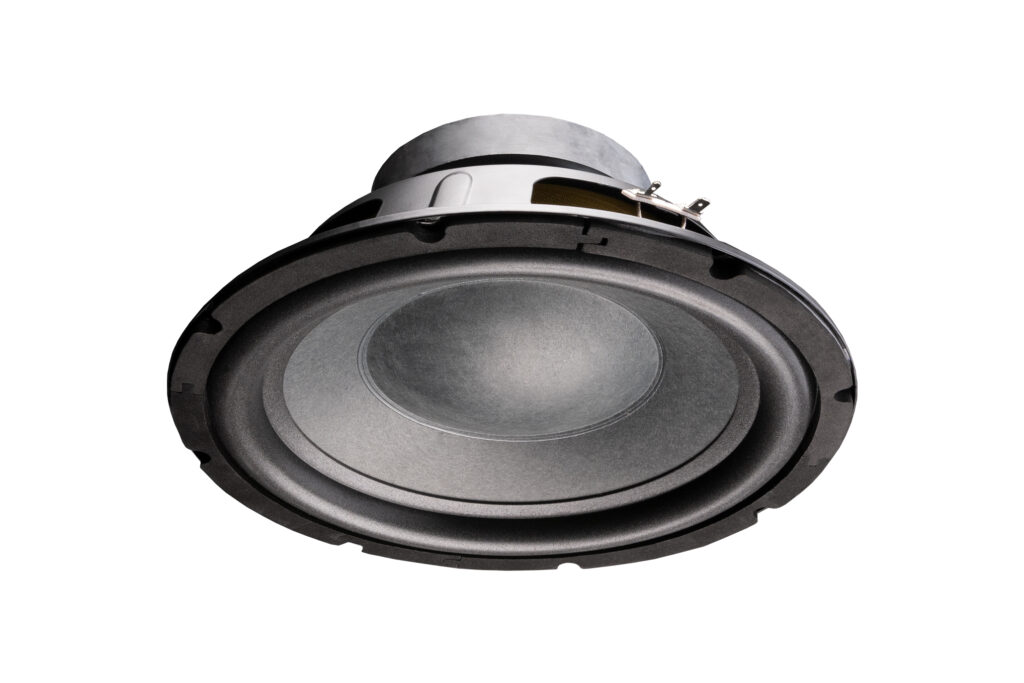

4 Ohm 10 Inch Round Subwoofer Speaker

Featuring a rugged design, in an industry standard form factor enabling ease of installation in a wide range of vehicles, with high levels of long term reliability and best in class performance Taoglas products are known for.

Our 10 Inch Subwoofer Speaker offers extended sub-bass frequency response and high sensitivity, with 4 Ohm impedance and power handling of 80W RMS and 160W Peak. Proven performance in demanding environments
including heavy duty trucks and industrial and agricultural equipment. Taoglas added speakers to our product portfolio to provide both high quality connectivity and high quality audio solutions from one trusted company.

Please contact your regional Taoglas customer service team for more information and installation guidelines.

Technical Specification
Name Value
Power - Rated 80W
Power - Max 160W
Impedance 4
Sensitivity 86 dB Continuous @ 1m
Length (mm) 244
Width (mm) 244
Height (mm) 116
Weight (g) n/a
