SPKM.50.8.A – 50mm Miniature Speaker 8 Ohm

SPKM.50.8.A

8 Ohm Impedance
Rated Input Power 500mW RMS
Max Input Power 800mW peak
Sensitivity 94 dB 0.5W @ 0.1m
Dimensions: Ø50 x 8mm
Connector: Wire Lead
RoHS & Reach Compliant

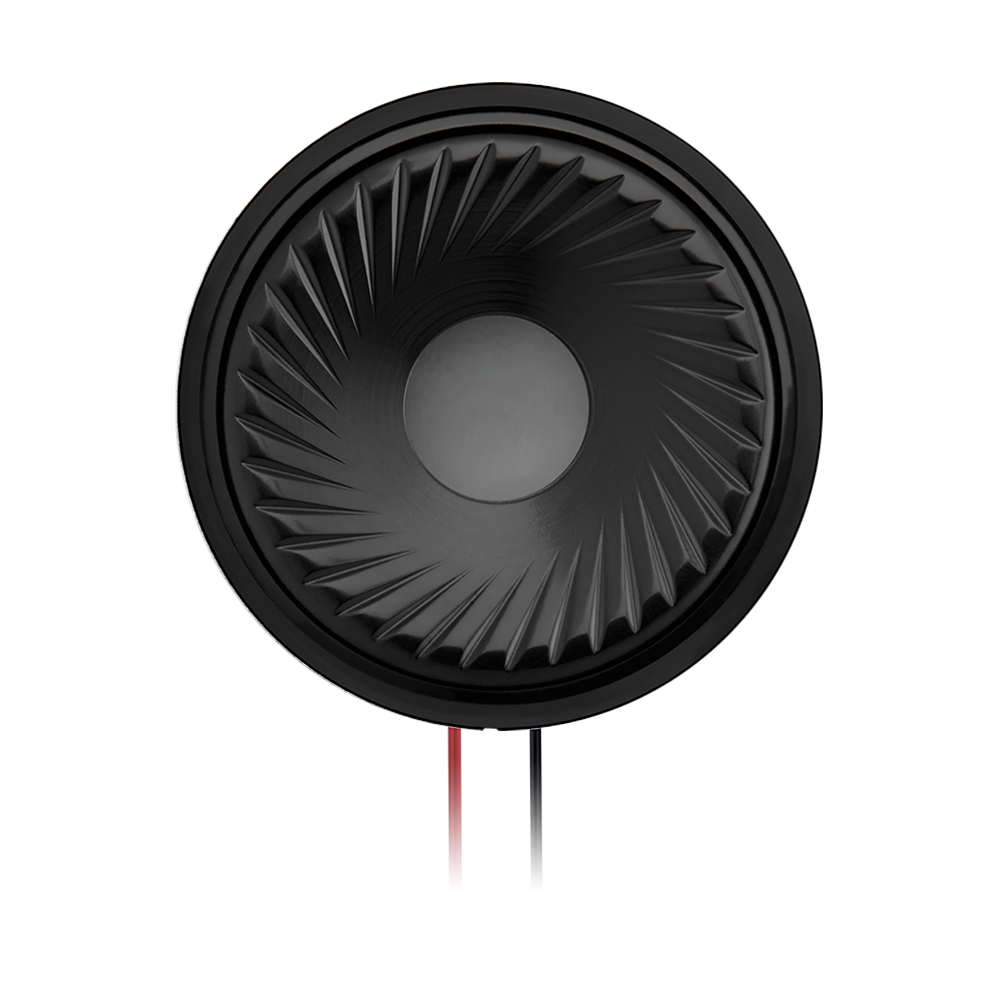

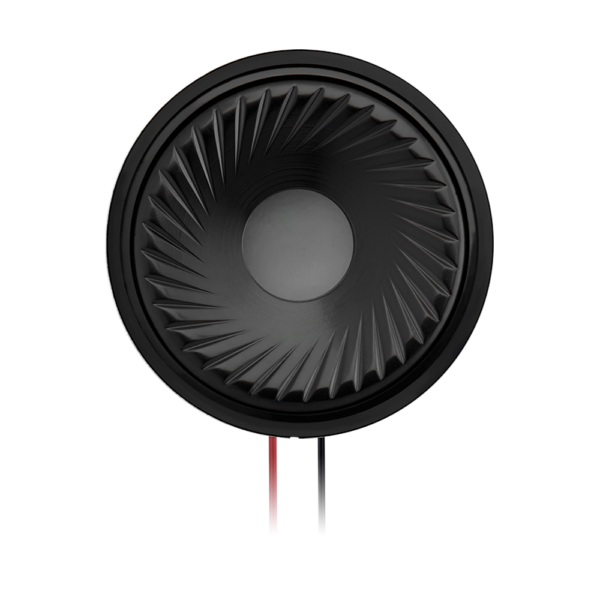

Image SPKM.50.8.A

SPKM.50.8.A

SPKM.50.8.A – 50mm Miniature Speaker 8 Ohm

Overview

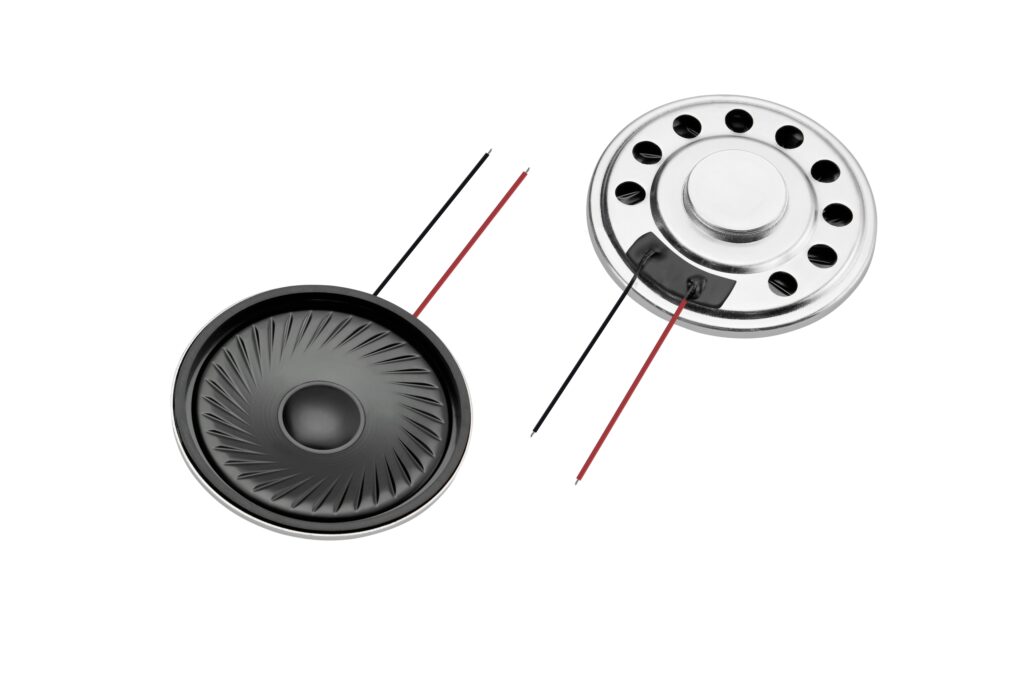

50mm Round Miniature Speaker 8 Ohm

Taoglas added miniature speakers to our product portfolio to provide both reliable connectivity and high-quality audio solutions from one trusted company. Featuring a compact design, enabling ease of integration in a wide range of electronics products, including IoT devices, with high levels of long-term reliability and best in class performance Taoglas products are known for. Our 50 mm Miniature Speaker offers a frequency response of 100 Hz – 10 kHz and high sensitivity, with 8 Ohm impedance and power handling of 500 mW RMS and 800 mW peak. They provide proven performance in demanding applications such as security alarm systems and IoT devices where the accurate reproduction of voice communications is required. Please contact your regional Taoglas customer support team for more information or installation guidelines.

Contact your regional Taoglas customer service team for more information or to discuss our audio services or for customized solutions to suit your device.

Technical Specification
Name Value
Power - Rated 500mW
Power - Max 800mW
Impedance 8
Sensitivity 94 dB Continuous @ 0.1 m
Length (mm) 50
Width (mm) 50
Height (mm) 8.1
Weight (g) n/a
