The AA.109 is provided with a one stage low gain LNA in order to be compatible with modules that have an integrated LNA with no automatic gain control. Examples are Navman modules Jupiter 3 Jupiter 30xLP, Jupiter 32xLP, Jupiter 31 and Micro Modular Technologies MN1818, MN3310, MN5010HS. Using a high gain GPS/Galileo antenna such as the AA.105 can deliver too much gain when using these modules. However please note that there are losses in antenna cables and connectors and it is not advised to use the AA.109 with more than 3m of cable.

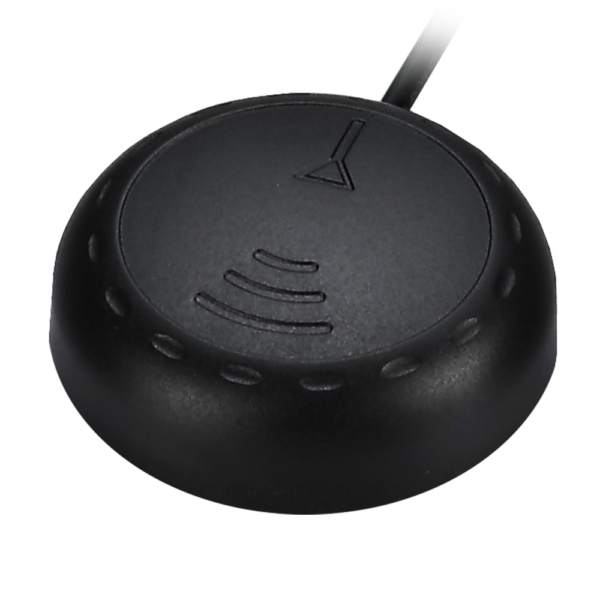

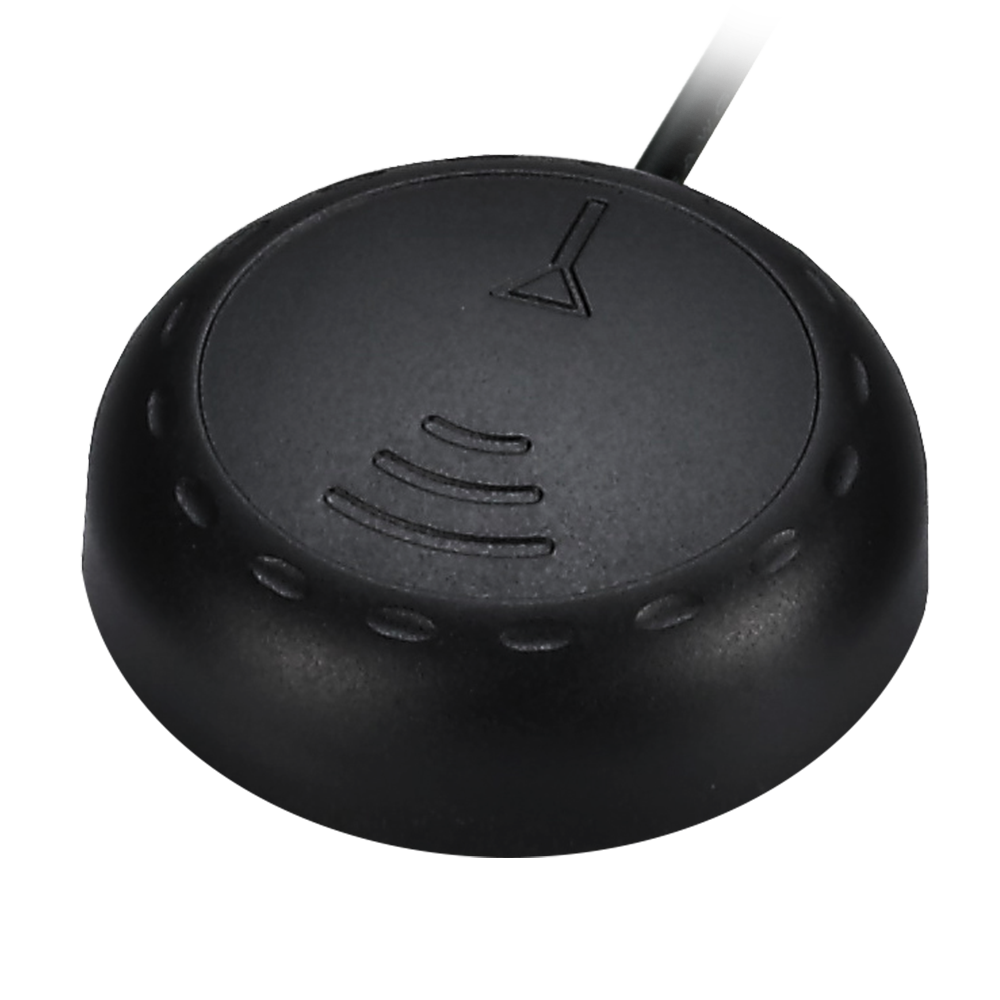

AA.109 Magnetic Mount GPS/Galileo 1 Stage LNA, 3M SMA(M)
AA.109.301111GPS/Galileo Antenna
1 Stage LNA (20dB) 1.575GHz
Magnetic Mount Version 3M SMA(M)
Dimensions: 47*45*14.5mm
Waterproof IP67 Rated
RoHS & REACH Compliant
AA.109.301111
AA.109 Magnetic Mount GPS/Galileo 1 Stage LNA, 3M SMA(M)
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, GNSS |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Magnetic |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP67 |
| RoHS | Yes |
| Gain (Max) | 20 |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| Length (mm) | 47 |
| Width (mm) | 45.3 |
| Height (mm) | 14.5 |
| Weight (g) | 110 |
