ASGGB254.A – Active GNSS Surface Mount 25mm Patch

ASGGB254.A

Covers bands:
• GPS L1
• GLONASS G1
• Galileo E1
• BeiDou B1
Embedded Active Circuitry
SMD Antenna – No Cable and Connector Required
Dimensions: 25*25*6.5mm
Designed for a 70*70mm Ground plane
RoHS & Reach Compliant

Image ASGGB254.A

ASGGB254.A

ASGGB254.A – Active GNSS Surface Mount 25mm Patch

Overview

Active GNSS Surface Mount 25mm Patch

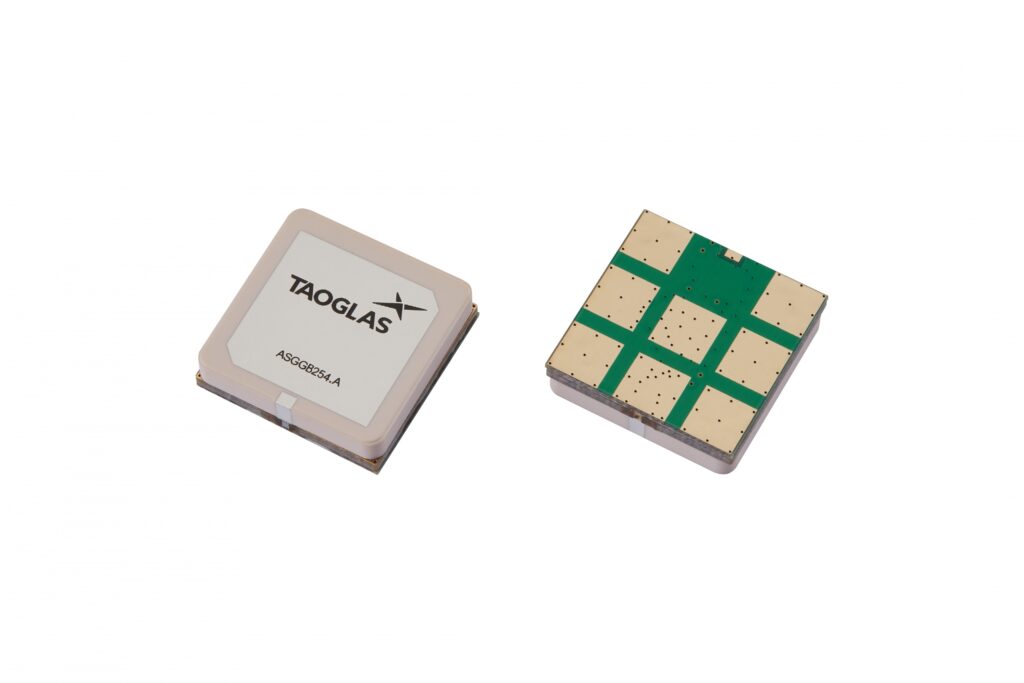

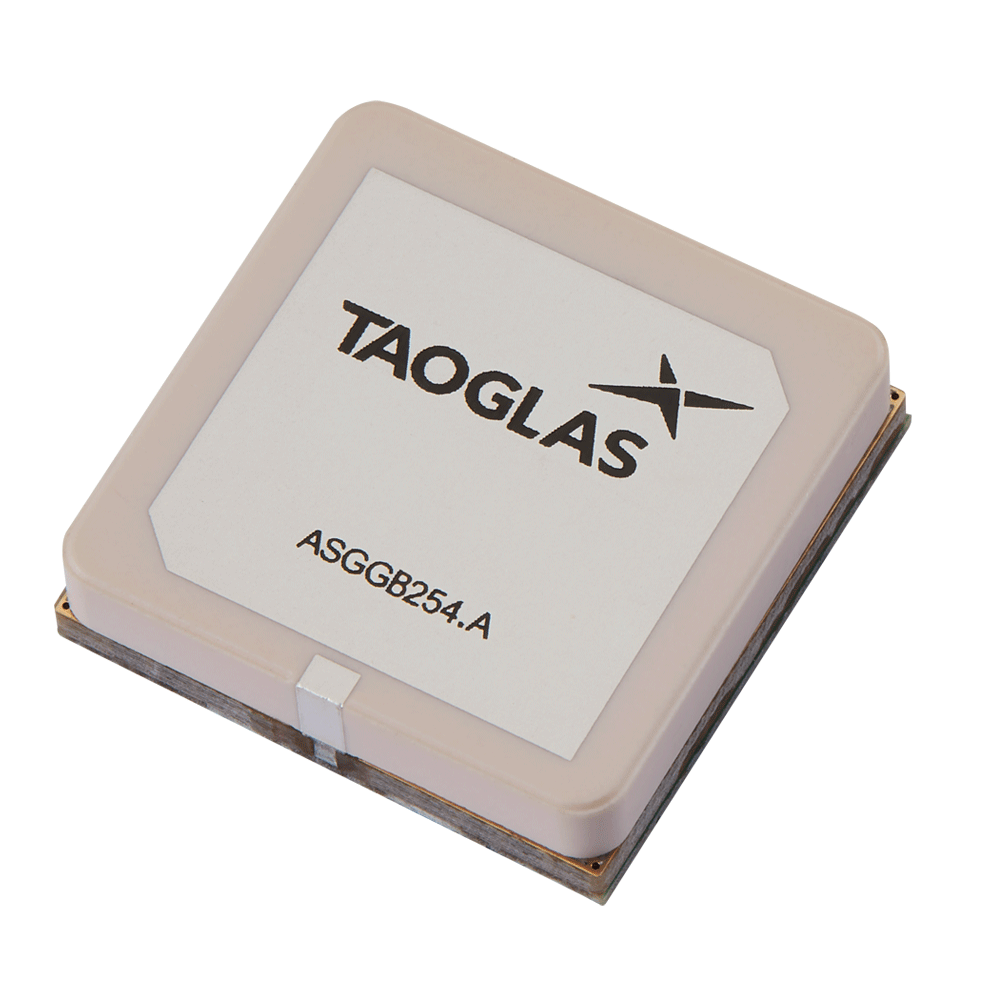

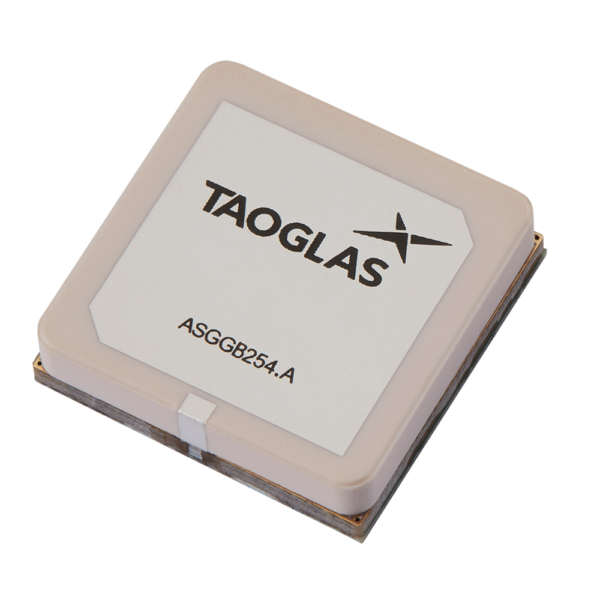

The Taoglas ASGGB254.A is a single band active GNSS surface mount patch covering GPS/GLONASS/BeiDou/Galileo. With hidden active circuitry embedded between the ceramic patch and PCB base, it has been designed to allow the user to mount it directly onto their device PCB. This eliminates the need for using a cable and connector thus speeding up the assembly process by allowing successfully solder surface mount components to a circuit board via the SMD process. The ASGGB254 measures 25 x 25 x 6.45mm and is optimized for a ground plane size of 70*70mm being required for operation however smaller ground planes can be used.

The ASGGB254 also includes a two-stage LNA and a front-end SAW filter to reduce out of band noise such as from nearby cellular transceivers and this improves the probability of the wireless device passing radiated spurious emissions certification. As with many high performance Taoglas patches, the ASGGB series is produced in a TS16949 automotive quality approved facility and each patch produced is 100% tested for gain (S21) and return loss (S11) to ensure total consistency of performance. If space on a user device is at a premium, a smaller patch, the 18x18mm ASGGB184.A is also available.

Typical applications include:
• Navigation
• Commercial Transportation
• Asset Tracking

Taoglas also offers custom tuning service based on minimum order quantities, contact your regional Taoglas customer support team for further information.

Video
Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 31.22
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1561MHz - 1601.6MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Reel
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 25
Width (mm) 25
Height (mm) 6.45
Weight (g) 12
