AP.10F GPS/GALILEO 2 Stage Active Patch 10*10*6mm, 39mm Ø0.81, I-PEX MHF® I (U.FL)

AP.10F.07.0039B

2 Stage 25dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
39mm, Ø0.81mm I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dims: 10*10*6mm

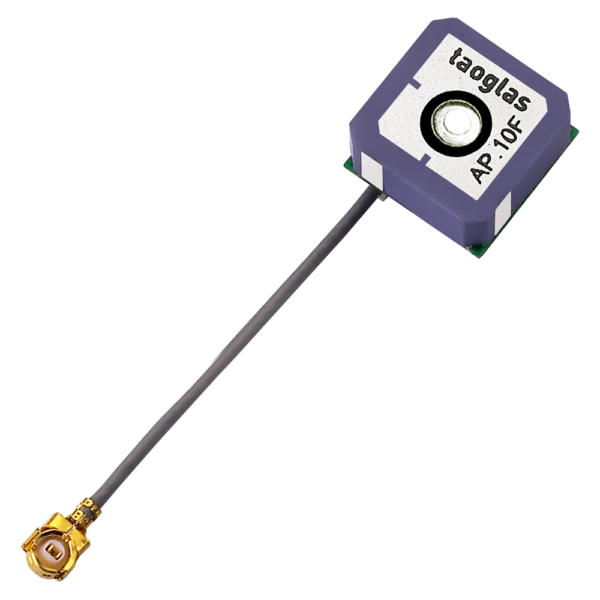

Image AP.10F.07.0039B

AP.10F.07.0039B

AP.10F GPS/GALILEO 2 Stage Active Patch 10*10*6mm, 39mm Ø0.81, I-PEX MHF® I (U.FL)

Overview

The AP.10F active GPS/GALILEO patch antenna is the smallest GPS/GALILEO high-performance antenna currently available in the world. It uses an extremely sensitive high dielectric constant powder formulation and tight process control and patented circular polarized side stripe design the 10*10*4mm patch antenna. The front end SAW filter reduces the risks where there is a cellular transmitter nearby of interference from out of band frequencies which can cause LNA burn-out, saturation, or radiated spurious emissions. This product is suited to small form factor mobile devices such as GPS Smartphones, Personal Location, Medical devices, Telematic devices and Automotive navigation and tracking. Custom gain, connector and cable versions are available. Custom tuning is available for specific customer device environments and is dependent on a minimum order quantity and NRE in some cases. Please contact regional sales office for details. The AP.10E consists of 2 functional blocks – the LNA and also the patch antenna.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 25
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Pin
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 0.81 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 39
Packaging Carton
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 10
Width (mm) 10
Height (mm) 6.2
Weight (g) 20
