AP.12F GPS/GALILEO 2 Stage Active Patch 13.4*13.4*6mm, 45mm Ø1.13mm, I-PEX MHF® I (U.FL)

AP.12F.07.0045A

2 Stage 28dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
45mm Ø1.13mm I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
13.4mm*13.4mm*6mm

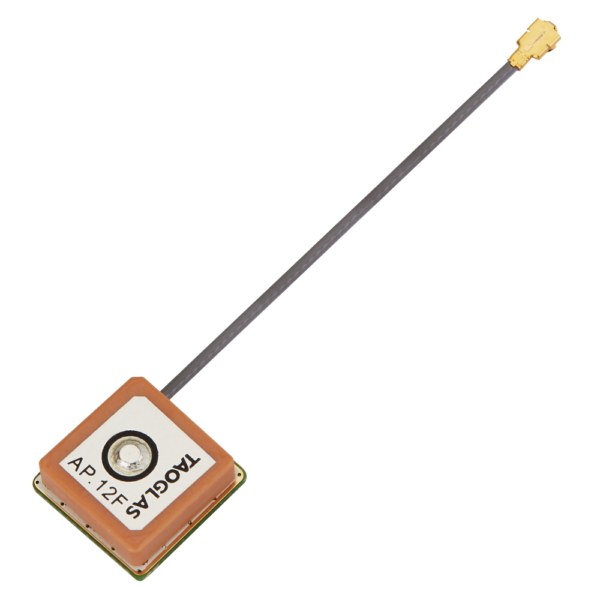

Image AP.12F.07.0045A

AP.12F.07.0045A

AP.12F GPS/GALILEO 2 Stage Active Patch 13.4*13.4*6mm, 45mm Ø1.13mm, I-PEX MHF® I (U.FL)

Overview

The AP.12F has been designed specifically for embedded (inside device) integration with GPS/GALILEO receiver modules where there is a GSM transmitter nearby and risk of interference and saturation. The AP.12F combines a 12*12*3.5mm advanced low profile ceramic patch antenna with a two-stage LNA and a front-end SAW filter with ultra thin coaxial cable. Only 5.6mm in height, this Taoglas active antenna module utilises XtremeGain™ technology for the highest industry sensitivity. The AP.12F consists of 2 functional blocks – the LNA and also the patch antenna. The AP.12F has a SAW filter on the front of it. The main use of the AP.12F would be for small devices where the GSM transmitter is close to the GPS/GALILEO antenna, it helps avoid burn-out of the LNA or the module due to interference from the GSM transmitter at out band frequencies.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 29
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 45
Packaging Carton
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 13.4
Width (mm) 13.4
Height (mm) 6.3
Weight (g) 22
