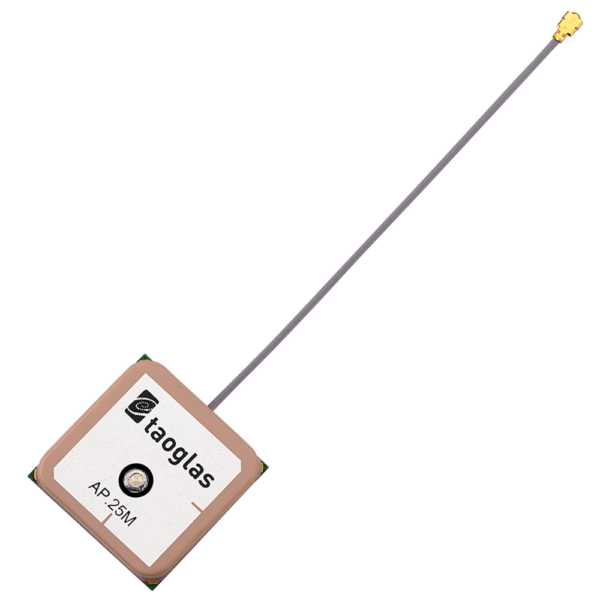

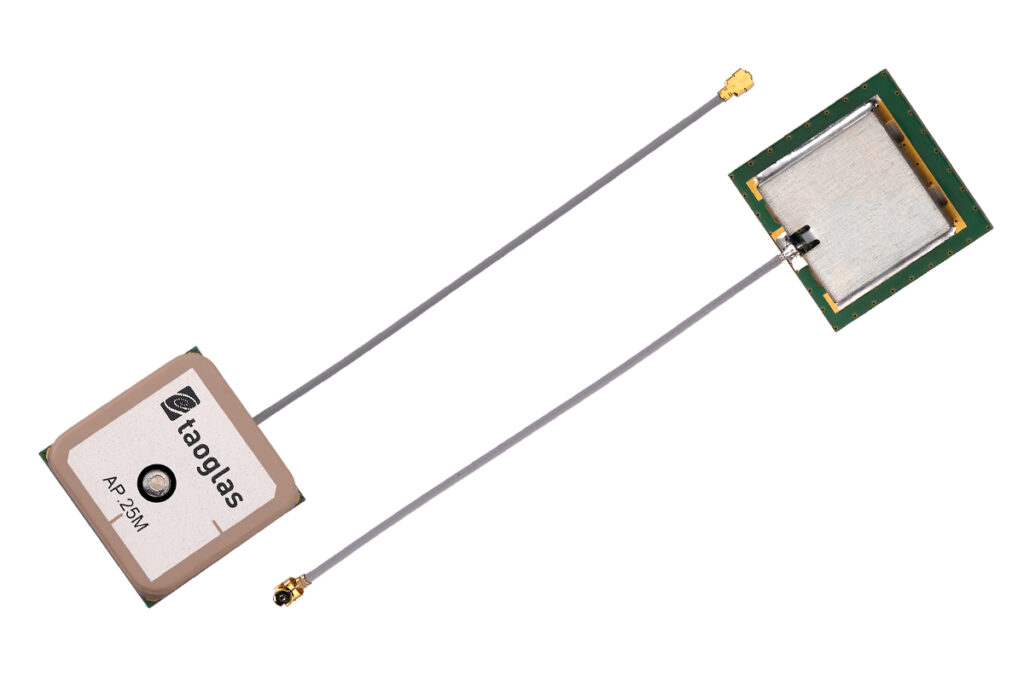

AP.25F GPS/GALILEO 2 Stage Active Patch 25*25*8mm, 78mm Ø1.13, I-PEX MHF® I (U.FL)

AP.25F.07.0078A

2 Stage 30dB
Active GPS/GALILEO Patch Antenna Module
Front End SAW Filter
78mm Ø1.13 I-PEX MHF® I (U.FL comp)
Input Voltage: 1.8V/3.0V/5.5V
Dims: 25*25*8mm

Buy Now Get Quote Request Sample
Image AP.25F.07.0078A

AP.25F.07.0078A

AP.25F GPS/GALILEO 2 Stage Active Patch 25*25*8mm, 78mm Ø1.13, I-PEX MHF® I (U.FL)

Datasheet
Image Process Change
Image 3D Model
Image CE Certification
Overview
Active GPS Antenna Utilizing XtremeGain™ Technology

Taoglas active GPS antenna utilizing XtremeGain™ technology for the highest sensitivity in industry. The AP.25F consists of 2 functional blocks – the LNA and also the patch antenna. The AP.25F has been designed specifically for embedded (inside device) integration with GPS /GALILEO receiver modules where there is a GSM transmitter nearby and risk of interference and saturation.

The AP.25F combines a 25*25*4mm advanced low profile ceramic patch antenna with a two-stage LNA and a front-end SAW filter, with ultra-thin coaxial cable.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 30
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Cable Mount
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity RHCP
Frequency Range 1575.42MHz
Connector Polarity Normal
Cable Length (mm) 78
Packaging Reel
VSWR 0
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 24
Width (mm) 22
Height (mm) 8
Weight (g) 29
