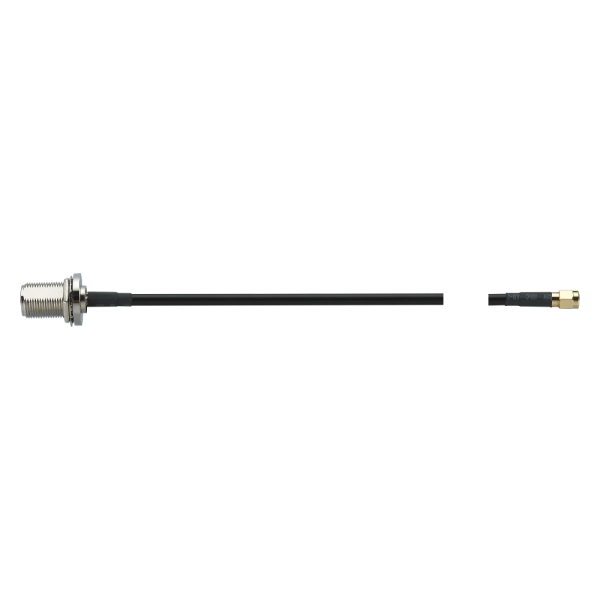

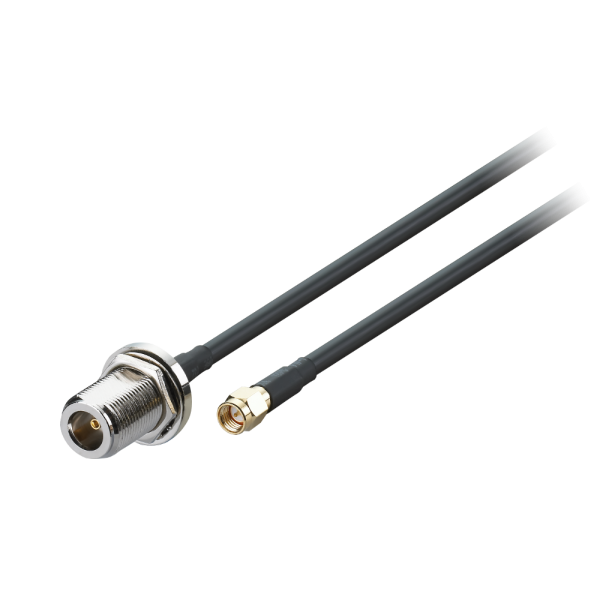

CAB.953 N Type Jack with O-Ring to 5000mm(16.4ft) CFD-200 to SMA(M)
CAB.953N type Jack with O-Ring to
SMA(M)ST Plug
CFD-200 Cable(Low Loss) – 16.4ft(5000mm)
Orientation: Straight-Straight
CAB.953
CAB.953 N Type Jack with O-Ring to 5000mm(16.4ft) CFD-200 to SMA(M)
Technical Specification
| Name | Value |
|---|---|
| Cable | ULC-200 |
| Connector 1 | N Type |
| Connector 1 Orientation | Straight |
| Connector 1 Polarity | Normal |
| Connector 1 Gender | F |
| Connector 1 Material | Nickel |
| Connector 2 | SMA |
| Connector 2 Gender | M |
| Connector 2 Orientation | Straight |
| Connector 2 Polarity | Normal |
| Connector 2 Material | Gold |
| Length (mm) | 5000 |
| Width (mm) | n/a |
| Height (mm) | n/a |
| Weight (g) | n/a |
