CAB.S01 I-PEX MHF 4 ® (HSC) to 100mm 0.81mm Coax Cable to SMA(F)BK Jack Straight

CAB.S01

SMA(F) Bulkhead Straight to
I-PEX MHF 4 ® (HSC comp)
Ø0.81 Cable – 100mm
Orientation: Straight-R/A

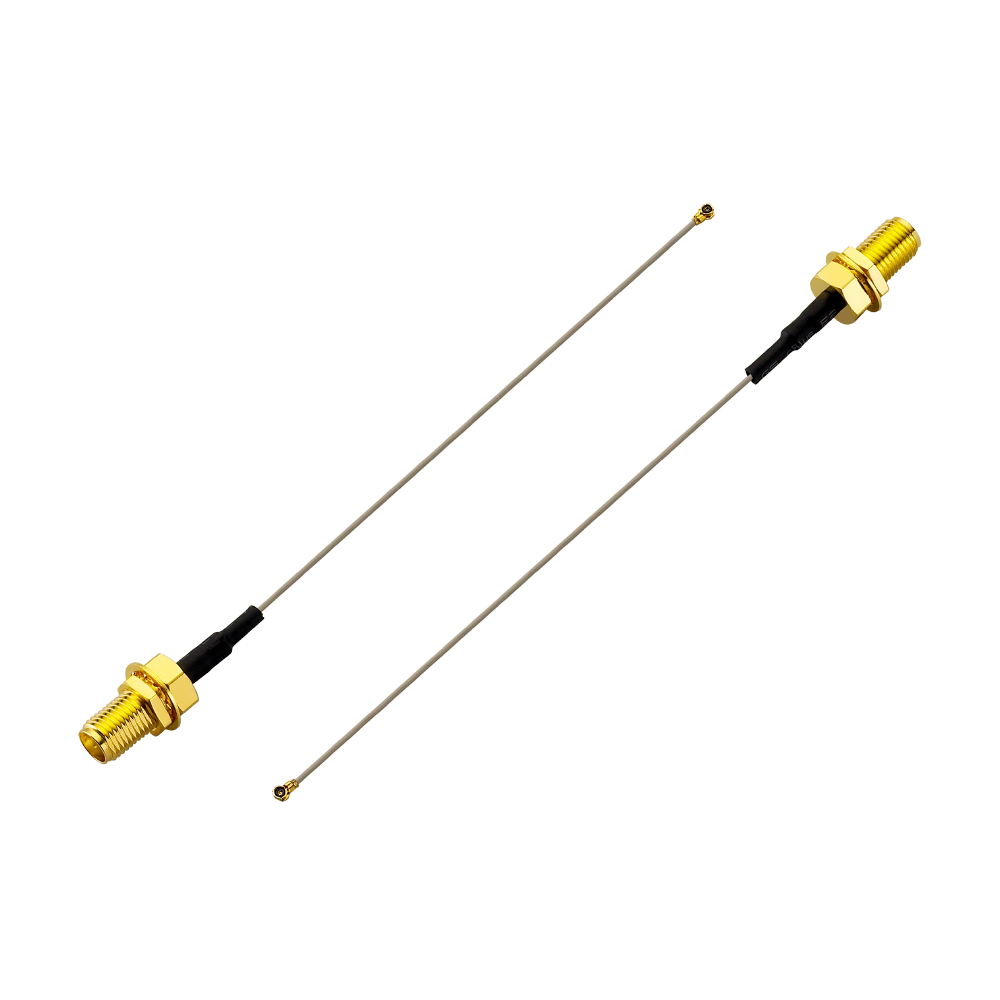

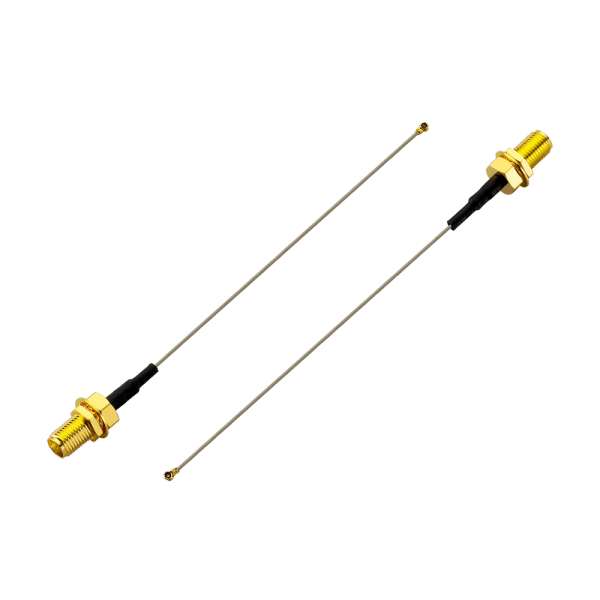

Image CAB.S01

CAB.S01

CAB.S01 I-PEX MHF 4 ® (HSC) to 100mm 0.81mm Coax Cable to SMA(F)BK Jack Straight

Technical Specification
Name Value
Cable 0.81 Coax
Connector 1 IPEX MH4
Connector 1 Orientation Straight
Connector 1 Polarity Normal
Connector 1 Gender F
Connector 1 Material Gold
Connector 2 SMA BK
Connector 2 Gender F
Connector 2 Orientation Straight
Connector 2 Polarity Normal
Connector 2 Material Gold
Length (mm) 100
Width (mm) n/a
Height (mm) n/a
Weight (g) n/a
