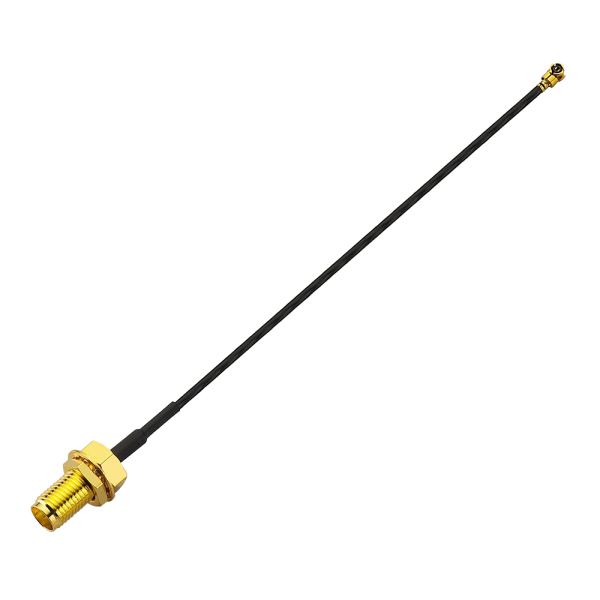

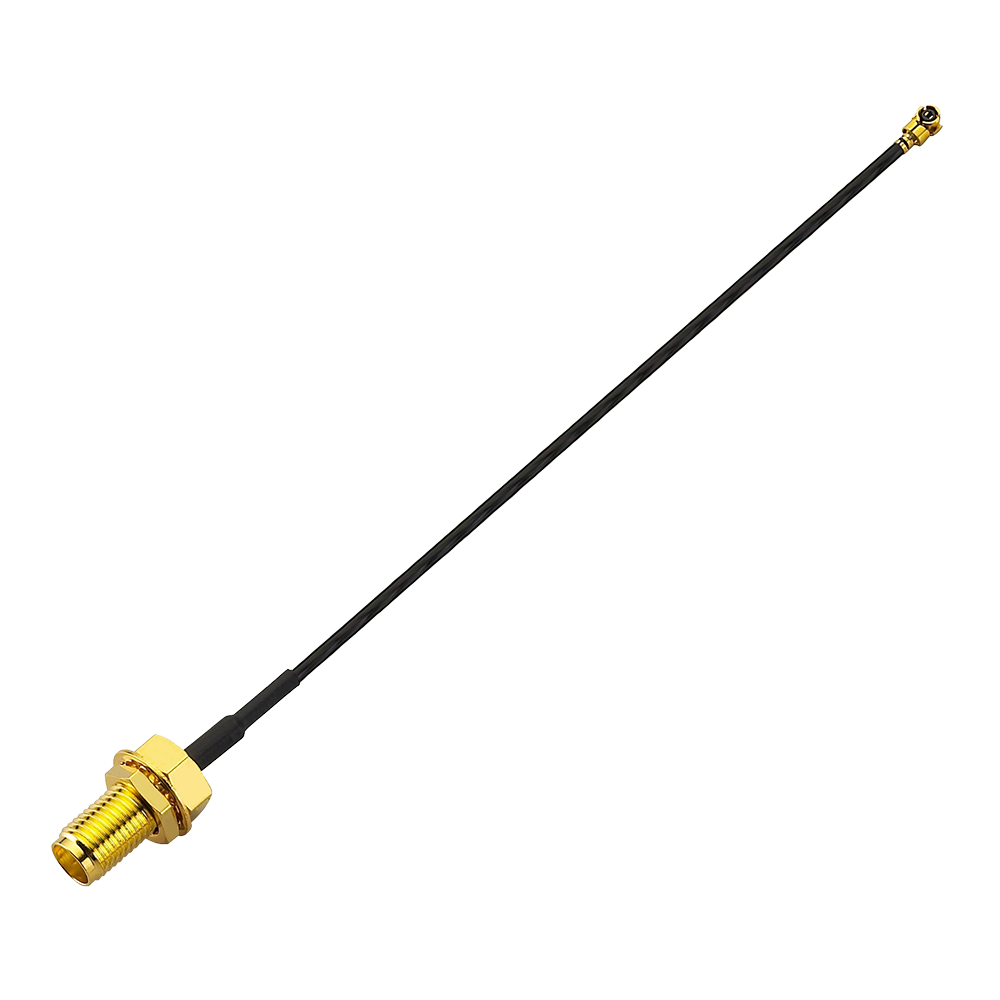

CAB.011 I-PEX MHF I ® (U.FL) to 95mm 1.13 cable to SMA(F)BKST
CAB.011SMA(F) Bulkhead Straight to
I-PEX MHF I ® (U.FL comp)
Ø1.13 Cable – 95mm
RoHS & REACH Compliant
CAB.011
CAB.011 I-PEX MHF I ® (U.FL) to 95mm 1.13 cable to SMA(F)BKST
Technical Specification
| Name | Value |
|---|---|
| Cable | 1.13 Coax |
| Connector 1 | IPEX MHFI |
| Connector 1 Orientation | Straight |
| Connector 1 Polarity | Normal |
| Connector 1 Gender | F |
| Connector 1 Material | Gold |
| Connector 2 | SMA BK |
| Connector 2 Gender | M |
| Connector 2 Orientation | Straight |
| Connector 2 Polarity | Normal |
| Connector 2 Material | Gold |
| Length (mm) | 95 |
| Width (mm) | n/a |
| Height (mm) | n/a |
| Weight (g) | n/a |
