CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna

CGGBP.35.3.A.02

Passive GPS/GLONASS/GALILEO/BeiDou Patch Antenna
BeiDou 1561MHz / GPS-GALILEO 1575MHz / GLONASS 1602MHz
Gain BeiDou 4.0dBi / GPS-GALILEO 3.0dBi / GLONASS 4.5dBi
Mounted with pin and adhesive tape
Automotive TS16949 Production and Quality Approved
Dimensions: 35*35*3mm

Image CGGBP.35.3.A.02

CGGBP.35.3.A.02

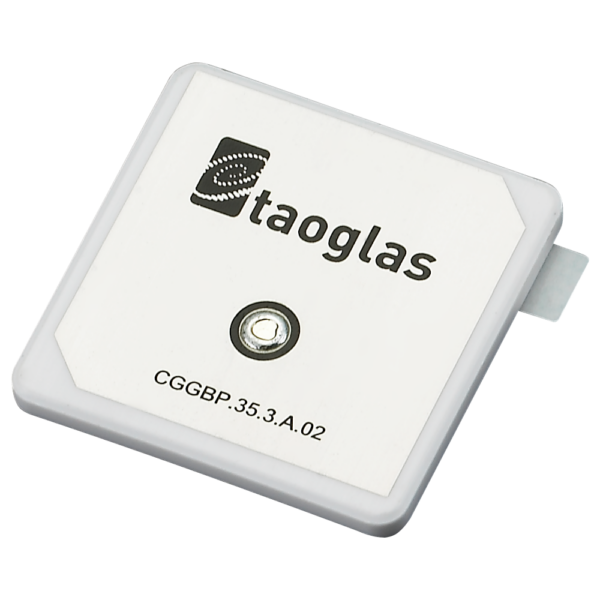

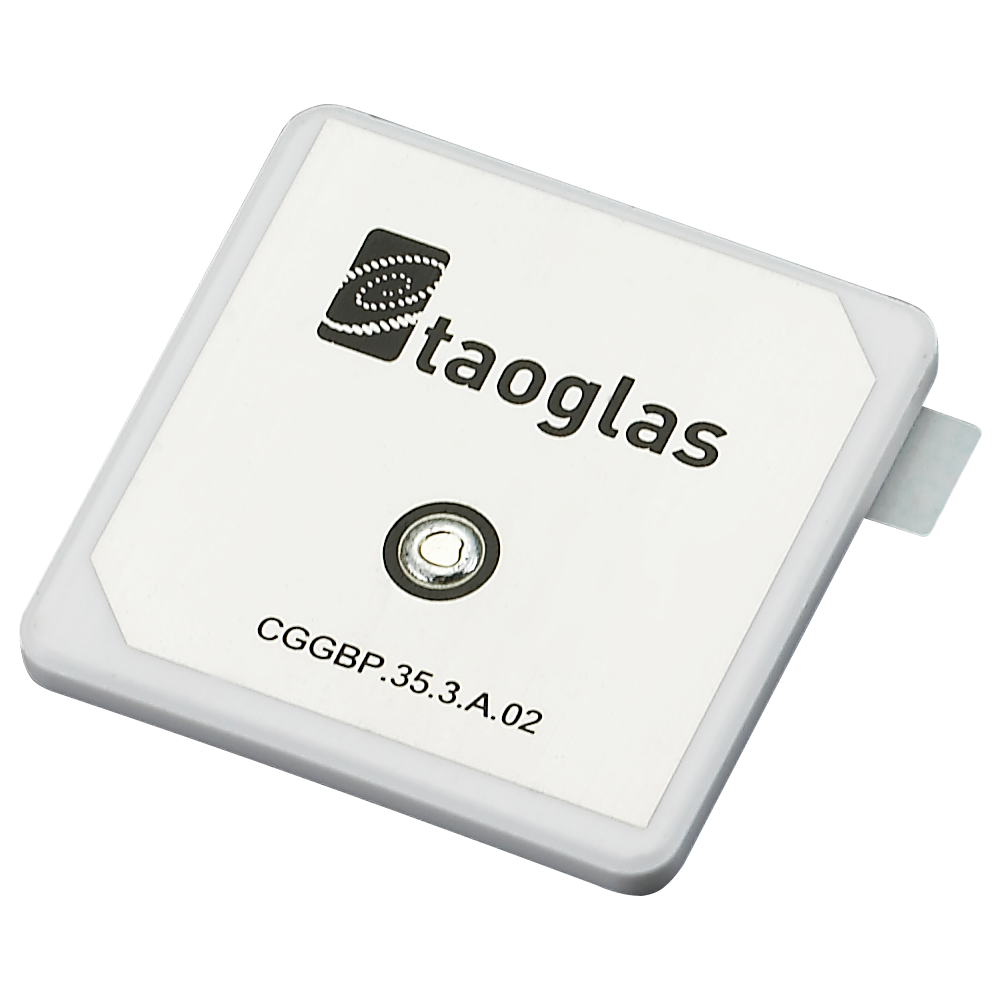

CGGBP.35.3.A.02 35*35*3mm GPS/GLONASS/GALILEO/BeiDou Patch Antenna

Overview

This CGGBP.35 35mm*35mm embedded ceramic GPS/GLONASS/GALILEO/BeiDou patch antenna has a wide band of operation, leading to excellent gain and radiation pattern stability on all three GNSS system bands. Compared to using a smaller antenna, this will translate into the GNSS system having much higher location accuracy, improved reliability of lock in urban areas, better signal reception, with more satellites acquired and a quicker time to first fix.

The patch is mounted via pin and double-sided adhesive. While the antenna will work very well in most device environments (Note cannot be covered with metal enclosure), tuning and further optimization of this antenna to different ground-planes and enclosures can be done if required, also including a pin length change. These changes would be subject to possible NRE and a minimum order quantity. Contact your local Taoglas sales office for more details.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, GNSS
Mechanical Style Patch
Gain (Max) 4.05
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Pin/adhesive
Termination Style SMD/SMT
Polarity RHCP
Frequency Range 1561MHz - 1602MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging Tray, Carton, Box
VSWR 0
GNSS Type Passive GNSS
GNSS Bands L1
Length (mm) 35
Width (mm) 35
Height (mm) 3.5
Weight (g) 13.5
