Evaluation Board for Globalstar SP.1615.25.4.A.02 1615MHz Patch Antenna 25*25*4mm

SPD.25A

Evaluation Board for Passive 4dBi Globalstar Ceramic Patch
1615MHz +/- 3MHz
Mounted with pin and adhesive tape
Globalstar approved
Evaluation Board Dimensions: 60*60mm

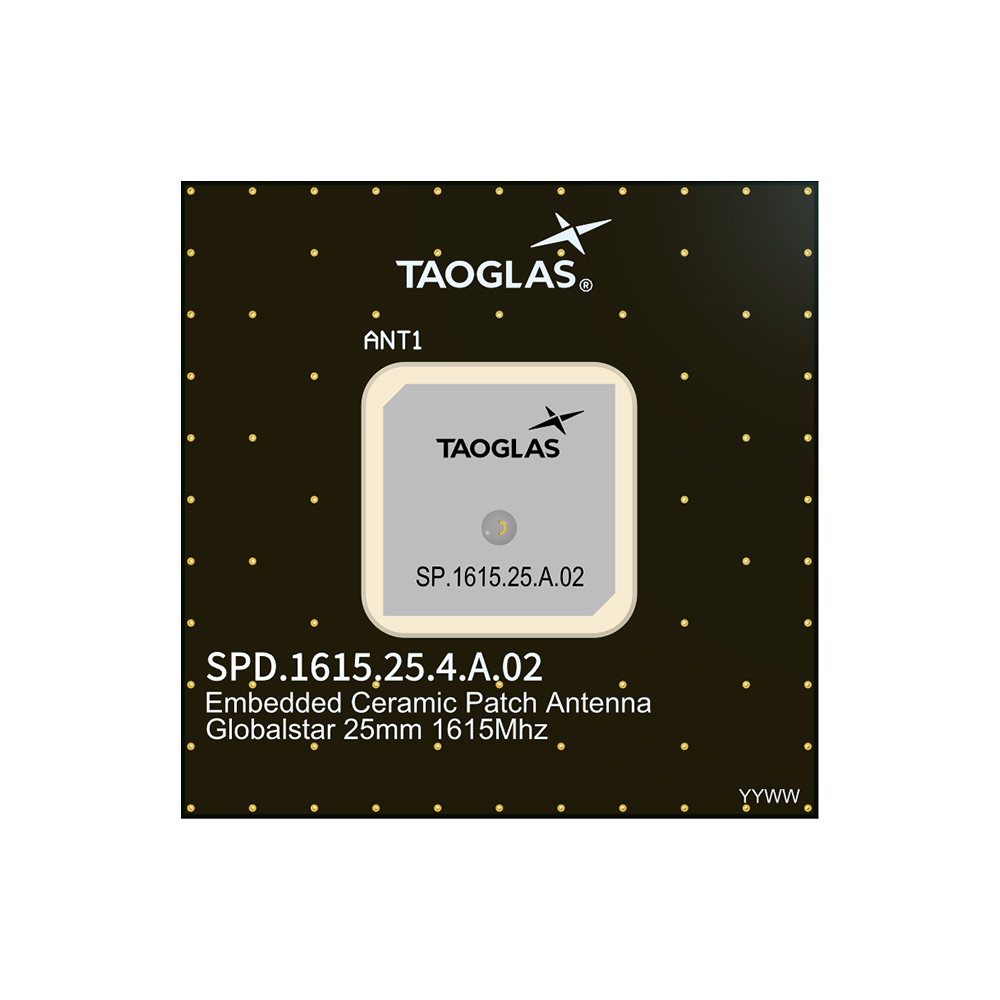

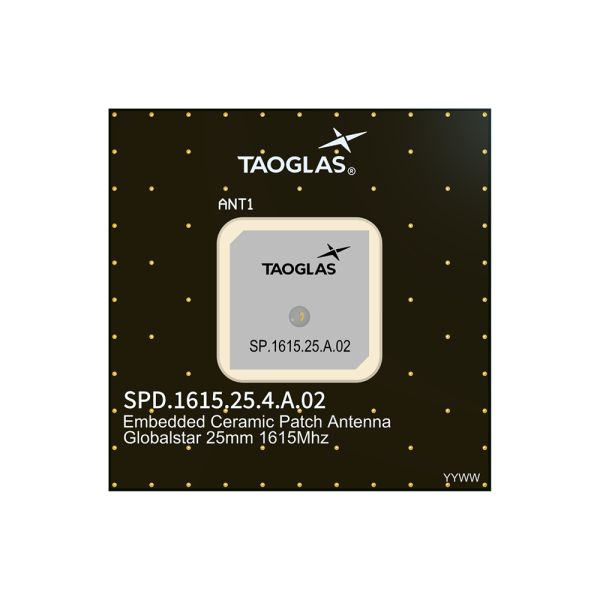

Image SPD.25A

SPD.25A

Evaluation Board for Globalstar SP.1615.25.4.A.02 1615MHz Patch Antenna 25*25*4mm

Overview

Evaluation Board for Globalstar SP.1615.25.4.A.02 1615MHz Patch Antenna

Antenna Applications:

This miniaturized 25mm square ceramic patch antenna is mounted via pin and double-sided adhesive and is the optimal embedded antenna for Globalstar applications.

The antenna is tuned to a reference 60mm square ground-plane. With an efficiency of nearly 80% at 1615 MHz, the antenna exhibits excellent upper hemisphere radiation pattern stability. Axial ratio is less than 3 on antenna operational angles, with a minimum axial ratio of 0.54 at zenith. The SP.1615.25.4.A.02 gain and directivity characteristics have been analyzed and approved by Globalstar.

Different device ground-planes and housing environments may require a custom tuned antenna. Taoglas provides testing and support services to characterize this antenna in your device and determine whether a custom tuned solution is necessary. There is a minimum order quantity and possible NRE for a custom solution. Contact your regional Taoglas office for support.

Technical Specification
Name Value
For Use With/Related Products SP.1615.25.4.A.02
Technology GNSS
Materials Ceramic
Length (mm) 60
Width (mm) 60
Height (mm) 0.8
Weight (g) 1
