Evaluation Board for SGGP.25.2.A.02 GPS/GLONASS/GALILEO 25*25*2mm SMD Mount Patch

SGGPD.25B

Evaluation Board for SMD Mount Passive GPS-GLONASS-GALILEO Patch Antenna
GPS/GALILEO 1575MHz
GLONASS 1602MHz
Single Feed SMD
Delivered on Tape and Reel and mounted during standard reflow process
Evaluation Board Dimensions: 50*50mm

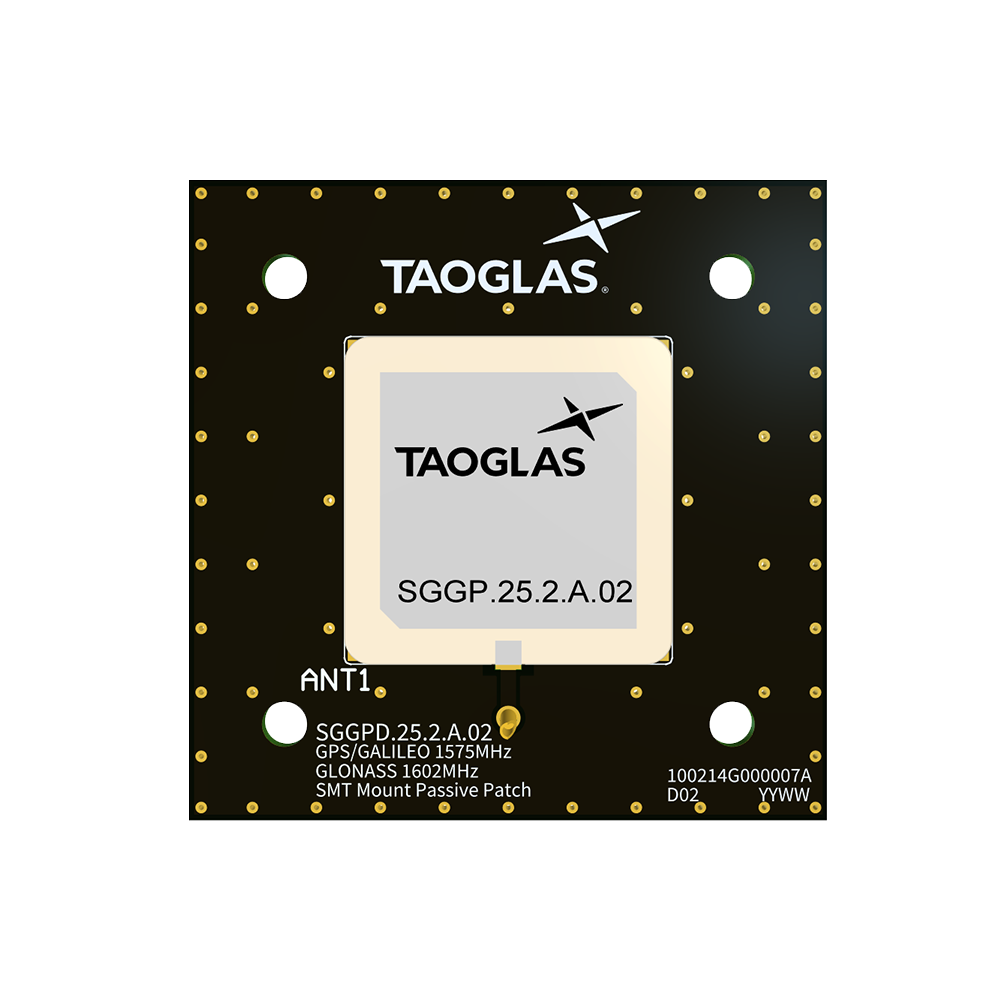

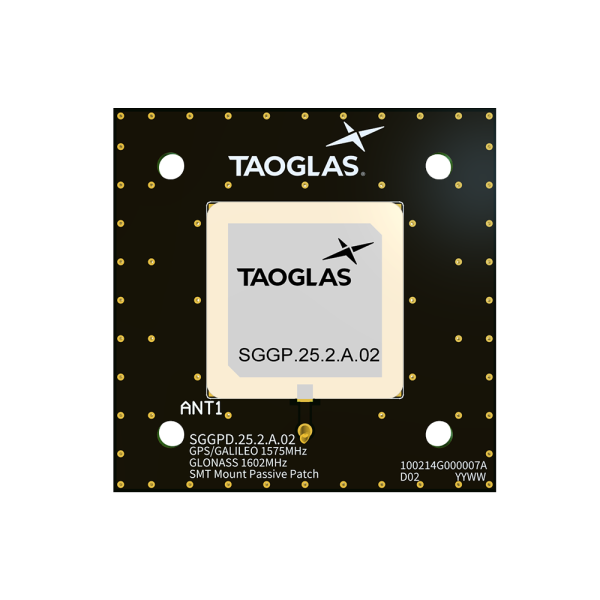

Image SGGPD.25B

SGGPD.25B

Evaluation Board for SGGP.25.2.A.02 GPS/GLONASS/GALILEO 25*25*2mm SMD Mount Patch

Overview

Evaluation Board for SGGP.25.2.A.02 SMD ceramic GPS/GLONASS/GALILEO passive patch antenna.

It is designed for applications such as:

  • Navigation
  • Infotainment
  • Vehicle tracking/fleet management systems
  • UAV
  • Telematics devices

— where a high-performance solution is needed in a low profile form factor. The antenna has been tuned to mount centrally a 50*50 mm ground plane, working at 1575.42MHz and 1602MHz, with a 3.34 dBi gain and 3.32 dBi gain, respectively. 70% efficiency is best in class. The ceramic patch is mounted via a reflow process from a pick and place machine. The antenna itself is manufactured and tested in a TS16949 first tier automotive approved facility. For further optimization to customer-specific device environments where the ground-plane size or mounting location is different, which can lead to detuning, custom-tuned patch antennas can be supplied, subject to NRE and MOQ. For more details please contact your regional Taoglas facility.

Technical Specification
Name Value
For Use With/Related Products SGGP.25.2.A.02
Technology GNSS
Materials Ceramic
Length (mm) 50
Width (mm) 50
Height (mm) 1
Weight (g) 1
