FXP280 868MHz 1.5dBi Flex PCB Antenna, 100mm 1.13, I-PEX MHF® I (U.FL)

FXP280.07.0100A

Flexible PCB ISM Antenna
868MHz
Ø1.13, 100mm cable, I-PEX MHF® I (U.FL comp)
Dims: 75*45*0.1mm

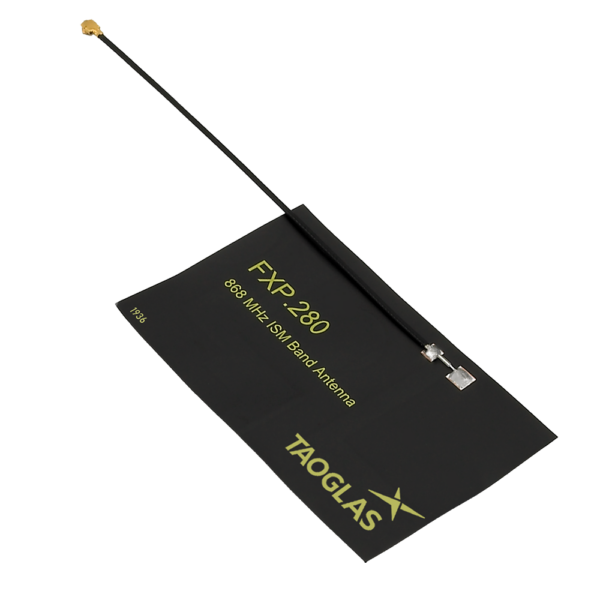

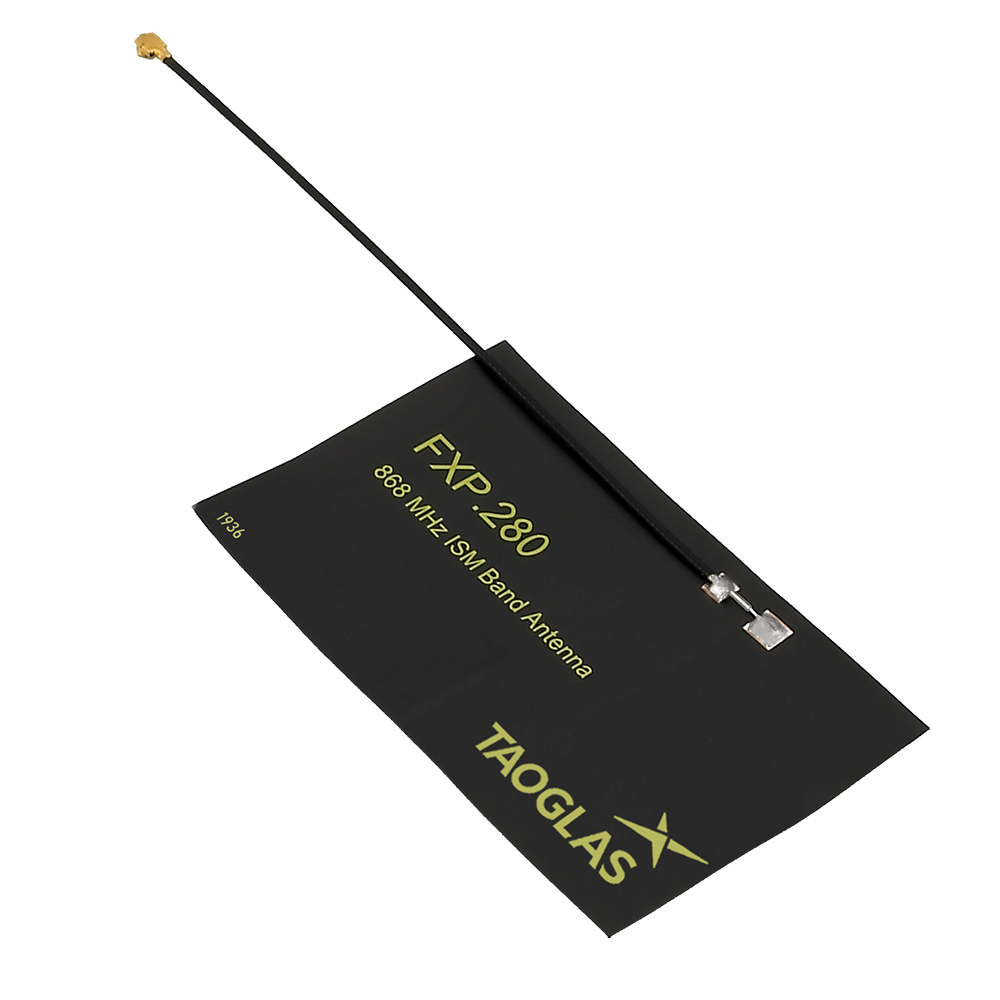

Image FXP280.07.0100A

FXP280.07.0100A

FXP280 868MHz 1.5dBi Flex PCB Antenna, 100mm 1.13, I-PEX MHF® I (U.FL)

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, ISM/LoRA
Mechanical Style Flex PCB
Gain (Max) 1.5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI (U.FL)
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 863MHz - 870MHz
Connector Polarity None
Cable Length (mm) 100
Packaging Carton
VSWR 0
Length (mm) 75
Width (mm) 45
Height (mm) 0.1
Weight (g) 1.5
