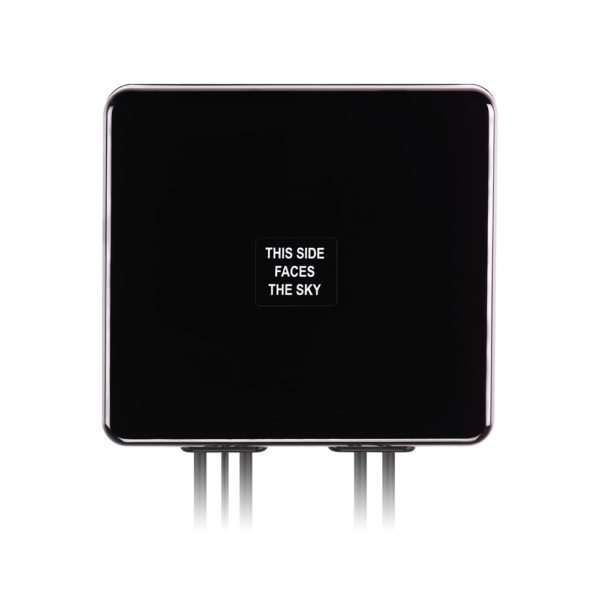

Guardian MA950 5in1 Adhesive Mount 2*LTE MIMO, 2*Wi-Fi MIMO, GNSS Antenna 146*134*20mm

MA950.A.LBICG.005

Low-Profile Housing
2* LTE MIMO 698-960MHz/1710-2170MHz/ 2490-2690MHz/ 3300-3600MHz
2* Wi-Fi MIMO 2.4GHz/5.8GHz
1* GPS-GLONASS-GALILEO-BeiDou Antenna
Worldwide 4G Bands including 3G and 2G
IP67 Waterproof Black Enclosure
Dims: 146*134*20mm

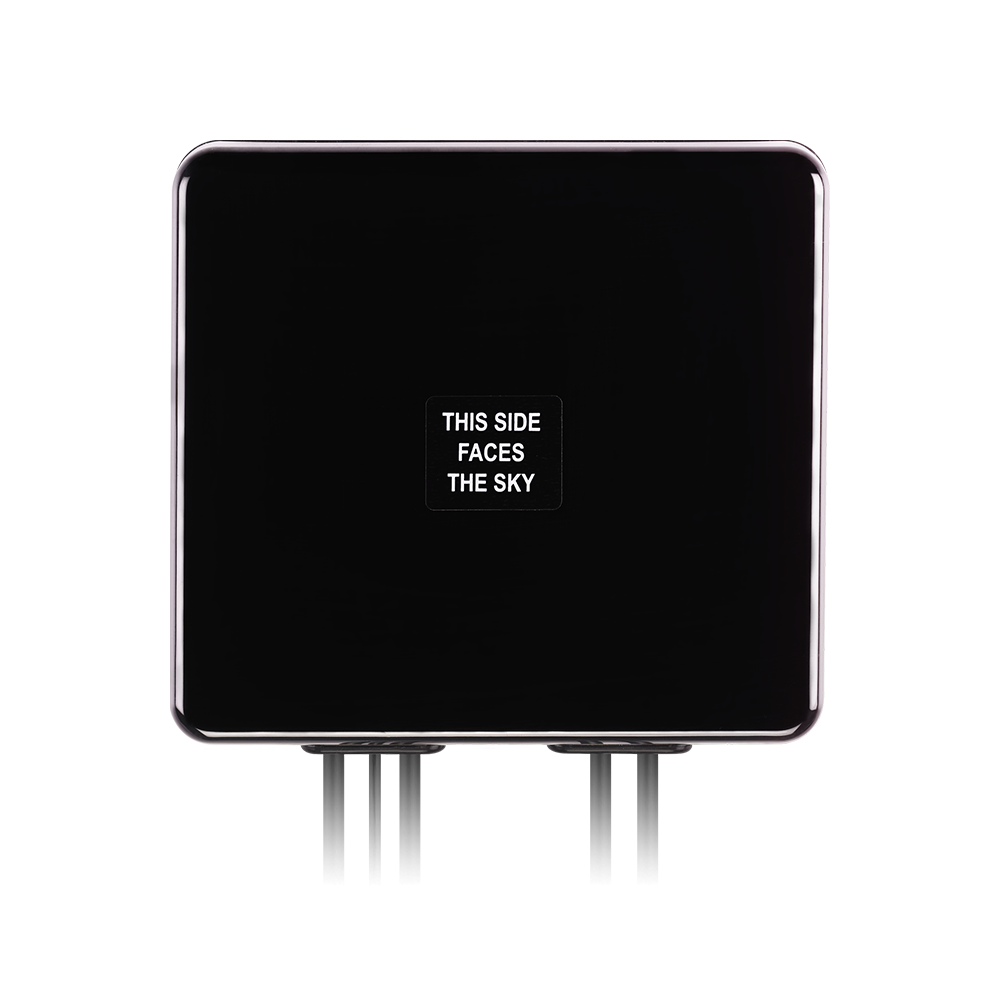

Image MA950.A.LBICG.005

MA950.A.LBICG.005

Guardian MA950 5in1 Adhesive Mount 2*LTE MIMO, 2*Wi-Fi MIMO, GNSS Antenna 146*134*20mm

Overview

IoT Antenna for First Responder Applications

The?5in1 Adhesive Mount Guardian is the go-to IoT Antenna for First Responder Applications. A popular choice for First Net applications because of its powerful MIMO technology for worldwide 4G LTE bands plus Wifi, plus GPS-GLONASS-GALILEO-BeiDou for location accuracy. This enables designers to cover a wide range of technologies by installing a single antenna. Furthermore, installation is painless because?the antenna can be adhered to the inside panel of the vehicle and reduces the need to cut a hole in the roof. This also means that less cable is needed, thus maximizing the performance of the antenna.

Watch below as Tim Dolan, VP of North American Sales talks?us through the installation process.

Video
Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-200
Connector Body Style Straight
Polarity RHCP, Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 1000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 3.06
Length (mm) 146
Width (mm) 134
Height (mm) 20
Weight (g) 640
