GW.71 2.4/5.8GHz 5dBi Dipole Antenna, RP-SMA(M) Hinged

GW.71.5153

2.4/5.8GHz 5dBi Dipole Antenna for ISM Band and WLAN IEEE 802.11a/b/g
Durable TPE Housing
Hinged 90 degree
RP-SMA(M) Connector

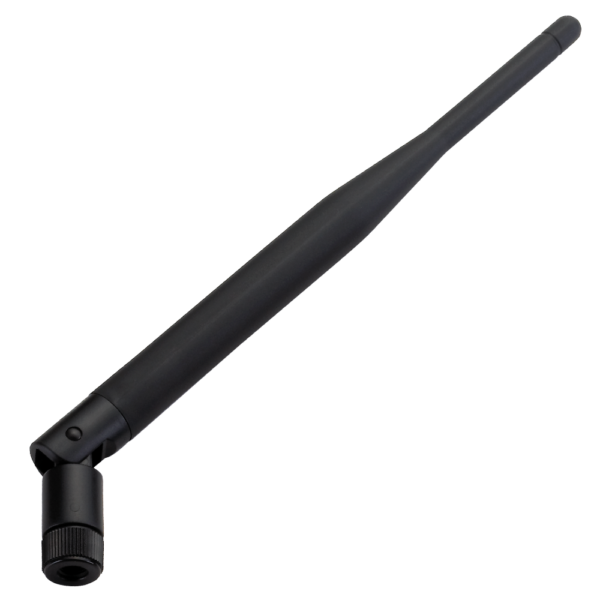

Image GW.71.5153

GW.71.5153

GW.71 2.4/5.8GHz 5dBi Dipole Antenna, RP-SMA(M) Hinged

Overview

Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.

For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of the GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test.

Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits.

Technical Specification
Name Value
Antenna Type External Antennas, Wi-Fi/Bluetooth
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Terminal
Termination Style Connector
Antenna Connector Type RP-SMA
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4/5.8GHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
RoHS Yes
Gain (Max) 5.5
Wi-Fi Bands 2.4/5.8GHz
Length (mm) 13
Width (mm) 13
Height (mm) 194
Weight (g) 24.6
