The A.03.C Hercules is a 40dB LNA high-performance thread mount GPS/Galileo antenna designed for external use on vehicles and outdoor assets where long cable lengths above 5 metres (15 feet) are used. Designed for heavy-duty work with one piece C&C machined nickel steel base plate and threads, there are also convenient side slots for running cables laterally. Durable UV resistant ABS housing is IP65 rated, resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of 52mm. Because it is a GPS/Galileo it is used for all location-based services such as large fleet vehicle tracking, remote monitoring, telematics, M2M applications and timing for base stations. Cable lengths, types and connectors are fully customizable. For cable lengths below 5M please use our 28dB LNA A.01.C model.

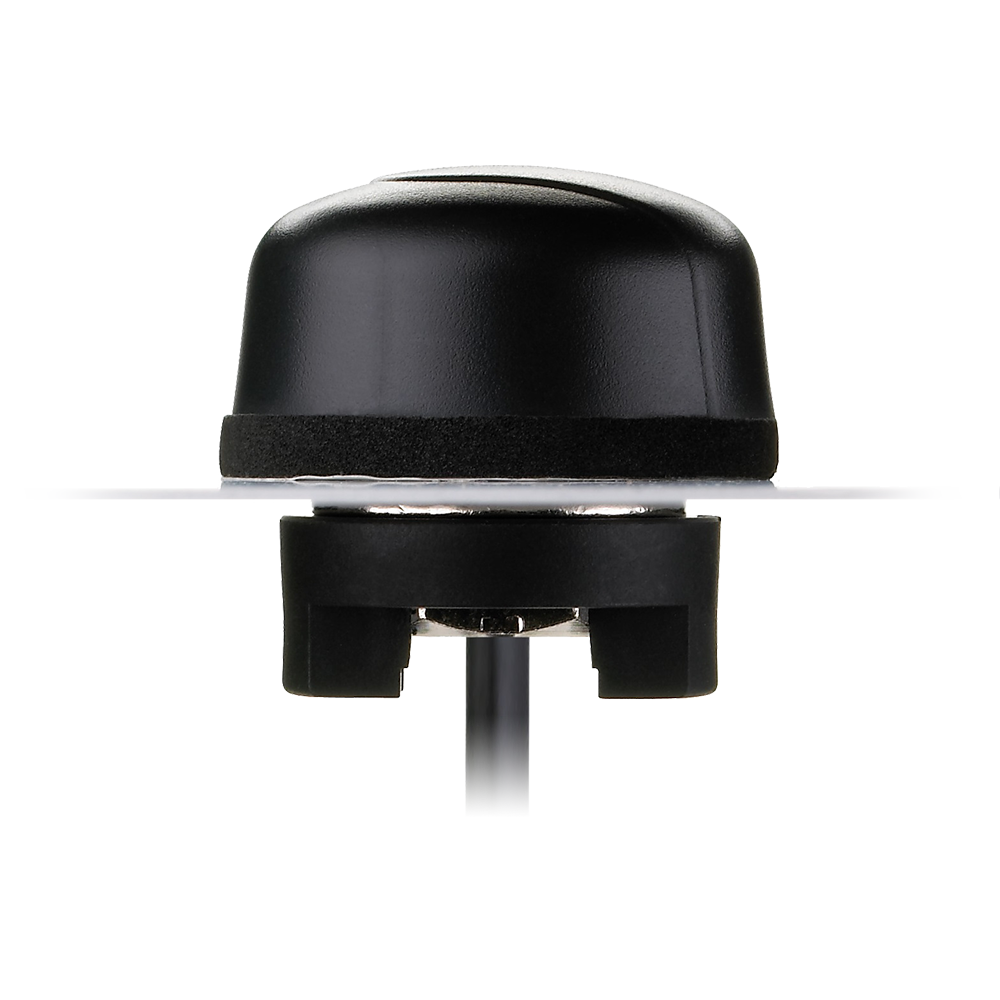

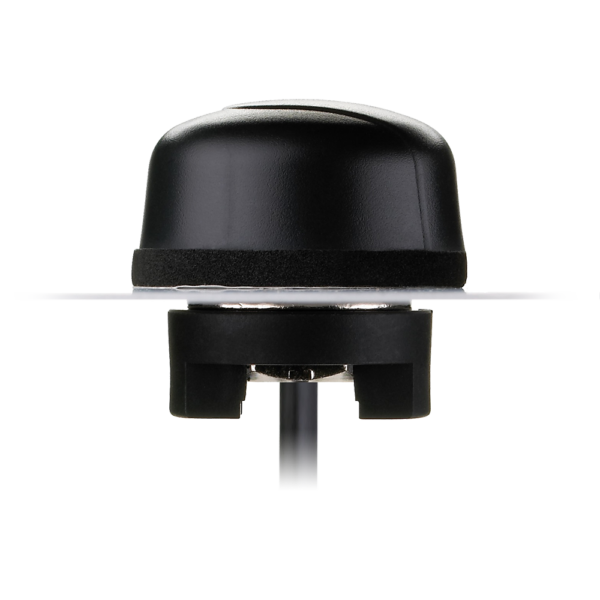

Hercules A.03 GPS/Galileo Permanent Mount, 10m RG-174 Antenna Ø48*29mm
A.03.C.1001111Hercules Active GPS/GALILEO Permanent Mount Antenna for longer cable lengths
Three Stage 40dB 1575MHz
10m RG-174 SMA(M) – Customizable
No Ground Plane Required
IP65 Rated Enclosure
Dimensions: H:29mm, Ø:49mm
A.03.C.1001111
Hercules A.03 GPS/Galileo Permanent Mount, 10m RG-174 Antenna Ø48*29mm
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, GNSS |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 10000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP65 |
| RoHS | Yes |
| Gain (Max) | 40 |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| Length (mm) | 47.8 |
| Width (mm) | 47.8 |
| Height (mm) | 28.5 |
| Weight (g) | 224 |
