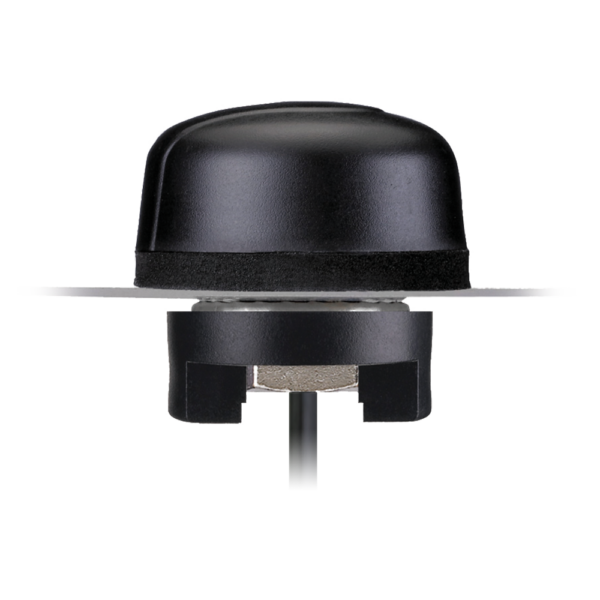

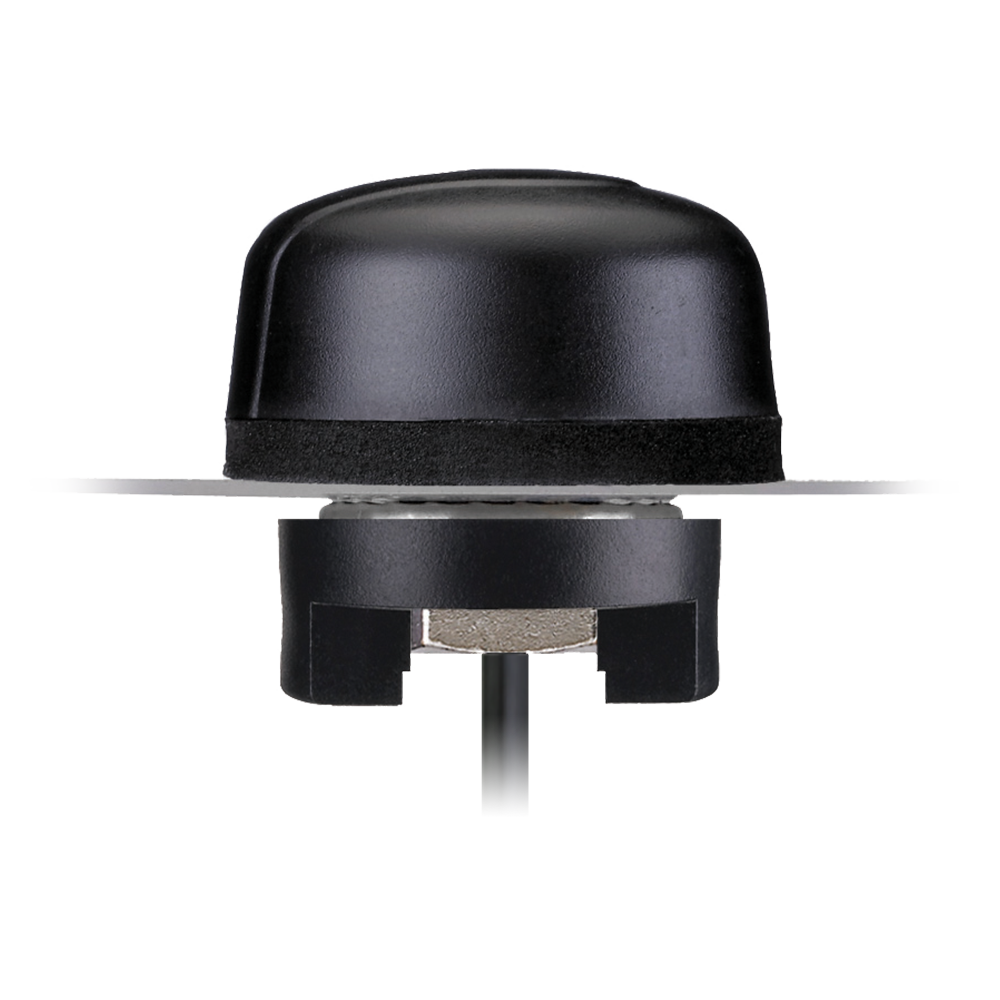

The A.40 Hercules is a high-performance thread mount GPS-GLONASS-Galileo antenna designed for external use on vehicles and outdoor assets. Designed for heavy duty work with one piece C&C machined nickel-plated steel base and threads, there are also convenient side slots for running cables laterally. Durable UV resistant PC housing is resistant to vandalism and direct attack. At only 29mm high it complies with the latest EU directives for height restrictions, whilst also enabling covert operation with a diameter of only 49mm. Cable lengths, types and connectors are fully customizable.
Hercules A.40 GPS/GLONASS/Galileo Permanent Mount, 3m RG-174 Antenna Ø48*29mm
A.40.A.301111Hercules GPS/GLONASS/Galileo Permanent Mount Antenna
GPS/GLONASS/Galileo–Total Gain 27dB at 3.0V
GPS/GLONASS/Galileo – 3M RG174 – SMA(M)
No Ground Plane Required
Dimensions: 48*48*29mm
A.40.A.301111
Hercules A.40 GPS/GLONASS/Galileo Permanent Mount, 3m RG-174 Antenna Ø48*29mm
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, GNSS |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | RHCP |
| Frequency Range | 1575.42-1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP65 |
| RoHS | Yes |
| Gain (Max) | 27 |
| GNSS Type | Active GNSS |
| GNSS Bands | L1 |
| Length (mm) | 47.8 |
| Width (mm) | 47.8 |
| Height (mm) | 29 |
| Weight (g) | 151 |
