This dipole antenna delivers high efficiency, averaging 50% across all bands, in a small form factor to tracking devices, metering devices and other M2M applications. Further tuning can be done for optimized embedded solutions at specific cellular bands.

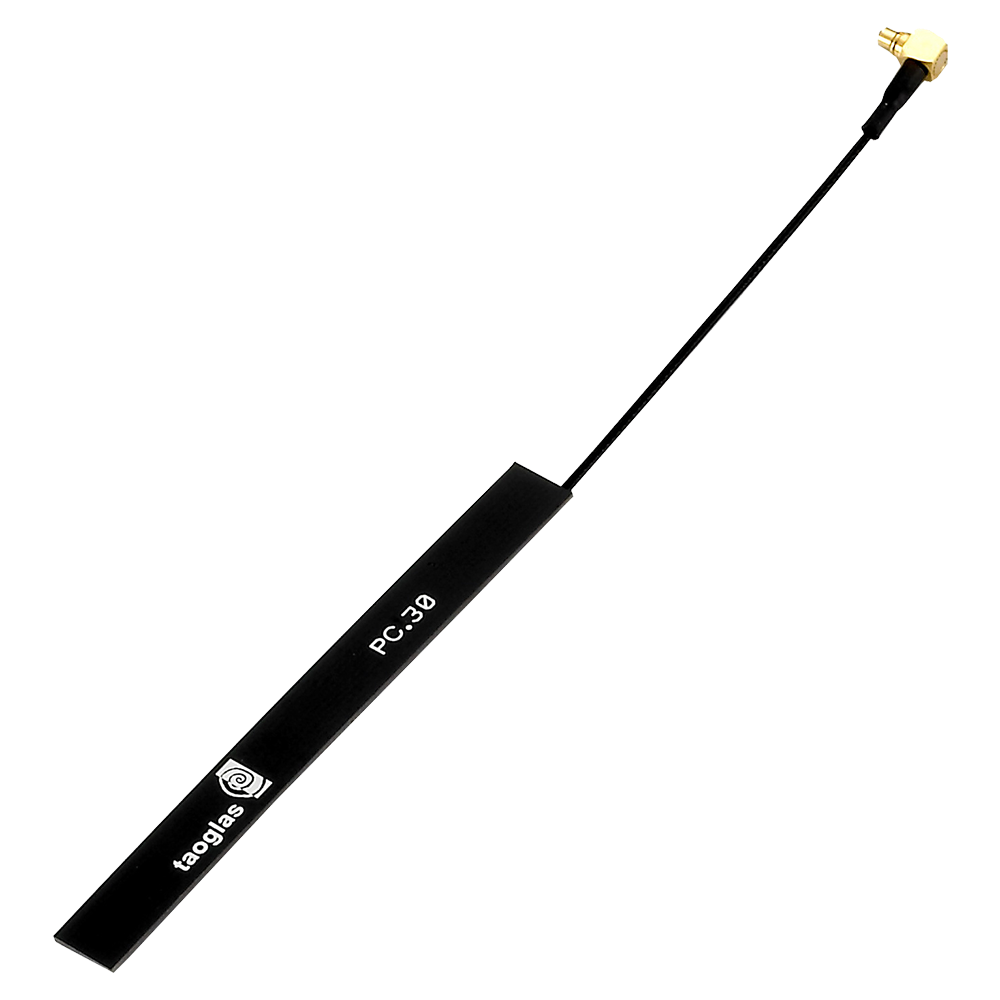

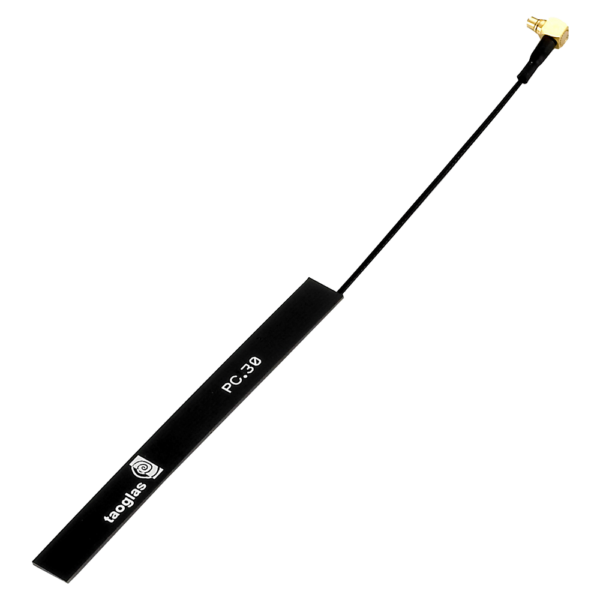

PC30 3G/2G Cellular FR4 PCB Antenna, I-PEX MHF® I, 100mm Ø1.13

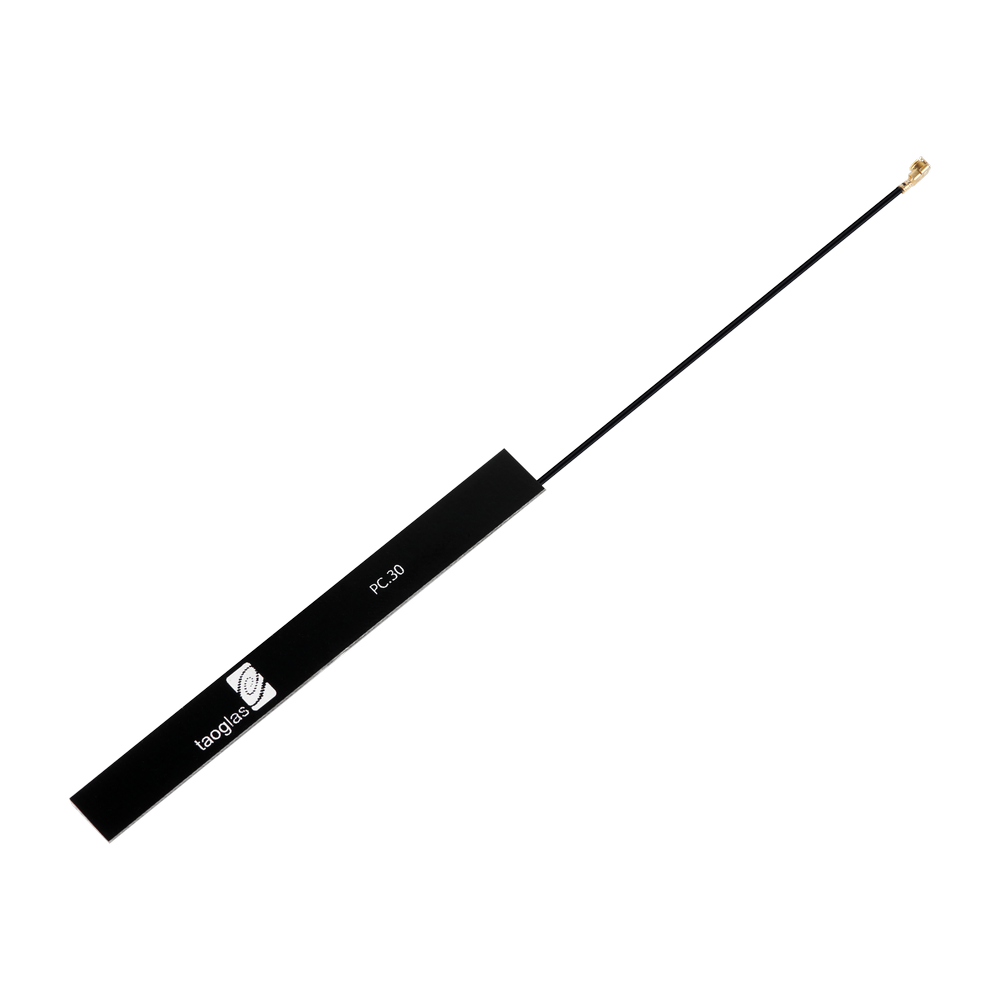

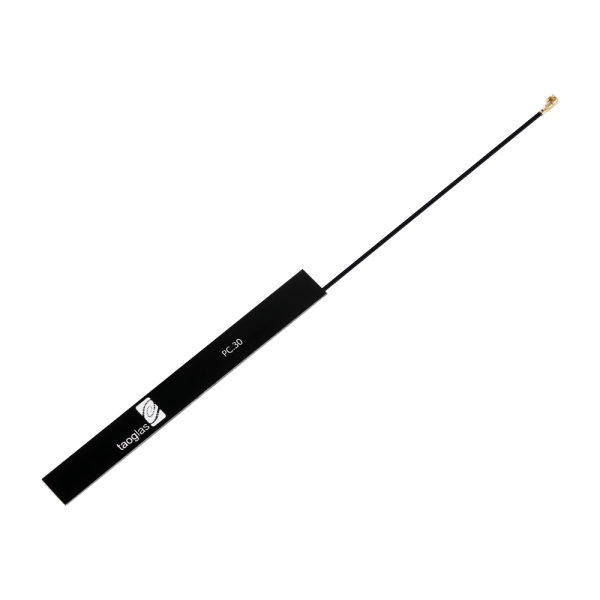

PC30.07.0100APenta-Band GSM FR4 Antenna
850/900/1800/1900/2100MHz
Average Efficiency 50%
I-PEX MHF® I Connector – 100mm, Ø1.13
Dims: 75*8*0.8mm
PC30.07.0100A
PC30 3G/2G Cellular FR4 PCB Antenna, I-PEX MHF® I, 100mm Ø1.13
Overview
Technical Specification
| Name | Value |
|---|---|
| RoHS | Yes |
| Antenna Type | Embedded Antennas, Cellular |
| Mechanical Style | PCB |
| Gain (Max) | 2 |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHFI (U.FL) |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824MHz - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| Packaging | Carton |
| VSWR | 0 |
| Length (mm) | 74.7 |
| Width (mm) | 8.2 |
| Height (mm) | 0.8 |
| Weight (g) | 1.47 |
