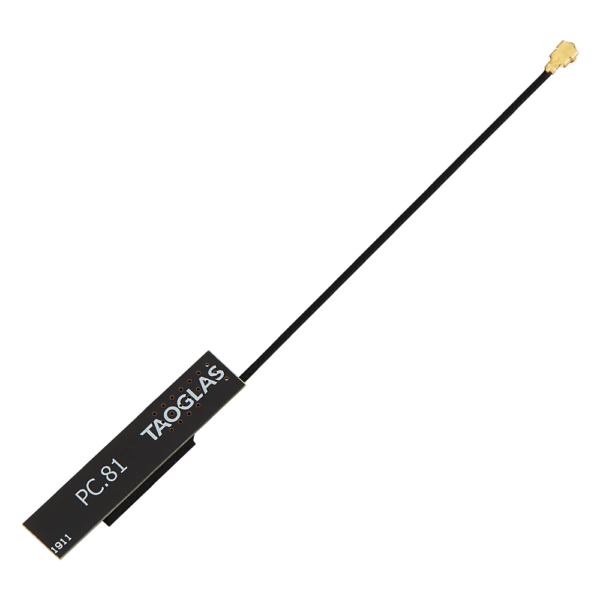

This miniaturized low profile PCB antenna is based on the smart TheStripe™ antenna. It consists of a PCB antenna and 1.13mm mini coaxial cable with Ipex MHF® U.FL comp) connector. The PC81 comes with a foam attachment which has 3M on the underside which assists in placing the antenna with sufficient clearance for performance.Cable lengths and connectors are fully customizable.
PC81 868MHz ISM Mini PCB Antenna 100mm 1.13, I-PEX MHF® I (U.FL)
PC81.07.0100A.db868MHz ISM Band PCB Antenna
Ø1.13, 100mm cable, I-PEX MHF® I (U.FL comp)
with foam attachment for assembly
Dimensions: 34*7*0.8mm (PCB)
PC81.07.0100A.db
PC81 868MHz ISM Mini PCB Antenna 100mm 1.13, I-PEX MHF® I (U.FL)
Overview
Technical Specification
| Name | Value |
|---|---|
| RoHS | Yes |
| Antenna Type | Embedded Antennas, ISM/LoRA |
| Mechanical Style | PCB |
| Gain (Max) | 2.25 |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | I-PEX MHFI (U.FL) |
| Cable Type | 1.13 Coax |
| Connector Body Style | Straight |
| Polarity | Horizontal |
| Frequency Range | 868MHz - 870MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 100 |
| Packaging | Carton |
| VSWR | 0 |
| Length (mm) | 34 |
| Width (mm) | 7 |
| Height (mm) | 0.8 |
| Weight (g) | 1 |
