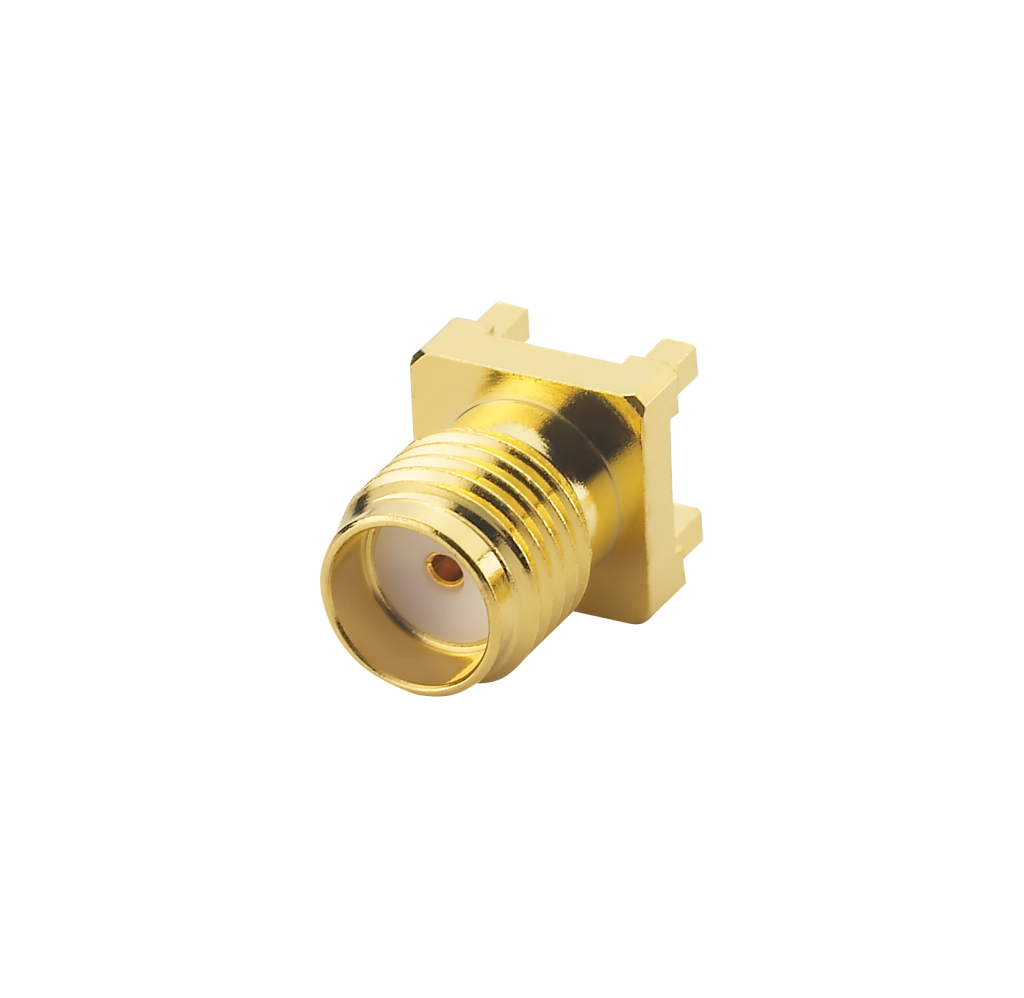

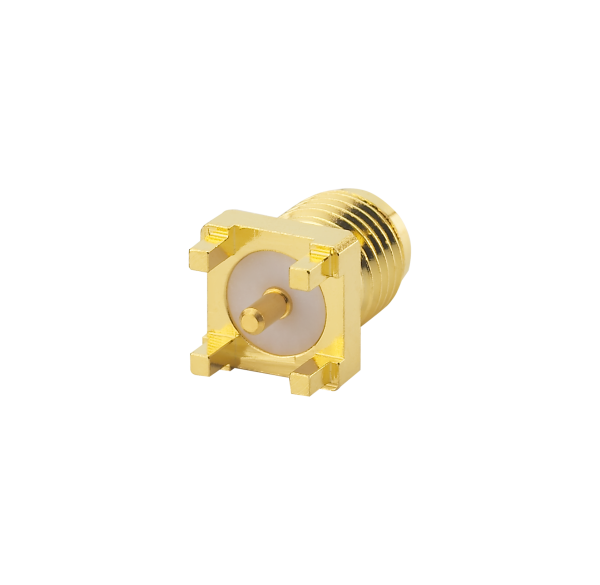

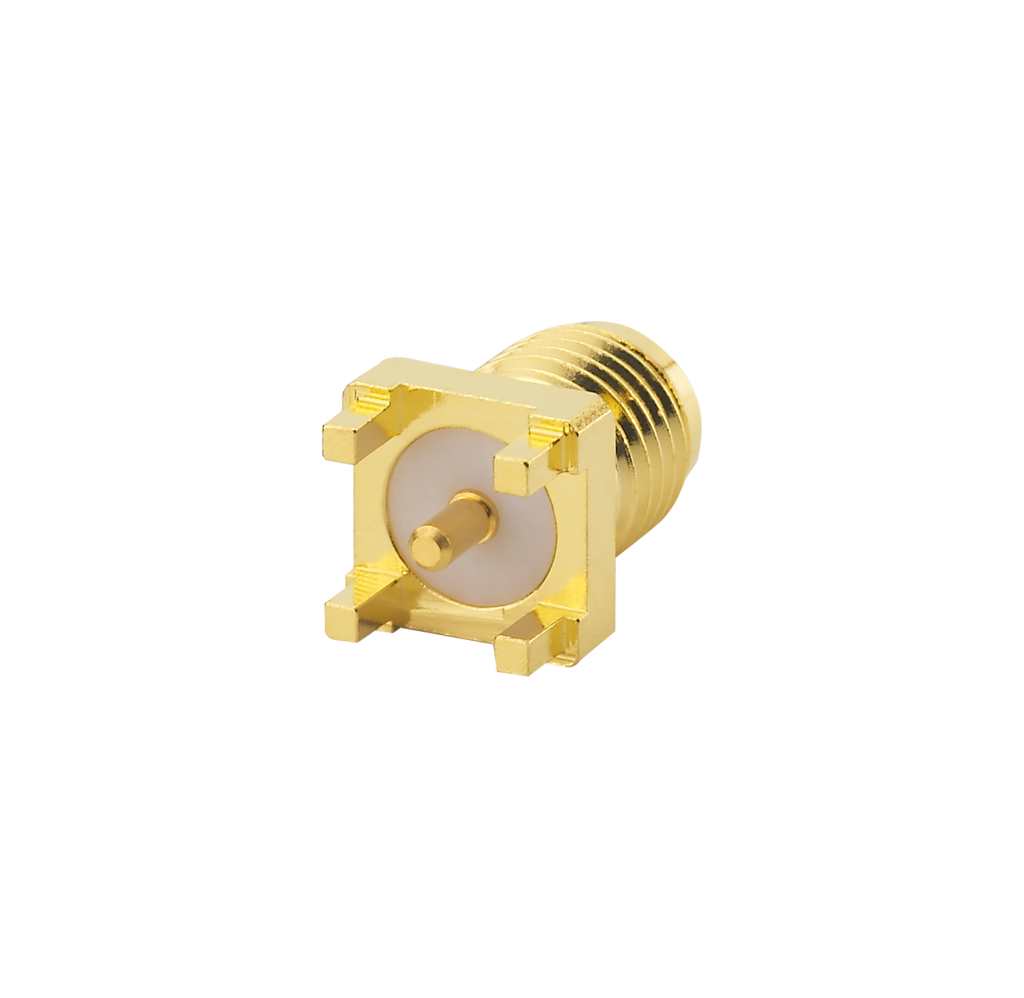

SMA Straight PCB Mount, Jack, Gold, 50Ω, Through Hole Pin
PCB.SMAFSTJ.A.HTSMA(F) Jack Straight
Surface Mount PCB Jack Connector Solder Attachment
Finish: Gold
Leg Length: 2mm
Total Length: 11mm
PCB.SMAFSTJ.A.HT
SMA Straight PCB Mount, Jack, Gold, 50Ω, Through Hole Pin
Technical Specification
| Name | Value |
|---|---|
| Connector Style | Straight |
| Connector Type | SMA |
| Contact Termination | PCB |
| Shield Termination | N |
| Impedance | 50 |
| Mounting Type | Through-Hole |
| Frequency - Max (GHz) | 18 |
| Number of Ports | 1 |
| Housing Color | Gold |
| Length (mm) | n/a |
| Width (mm) | n/a |
| Height (mm) | n/a |
| Weight (g) | n/a |
