SMA Wall Mount Bracket with 3m of Cable

WMB.A.SMA.F.305111

Mounts Flush to Wall
3m Low Loss TGC-200 Cable
All accessories included
Designed for all Taoglas SMA Terminated products
SMA(M) Connector at the end of cable run
RoHS and REACH Compliant

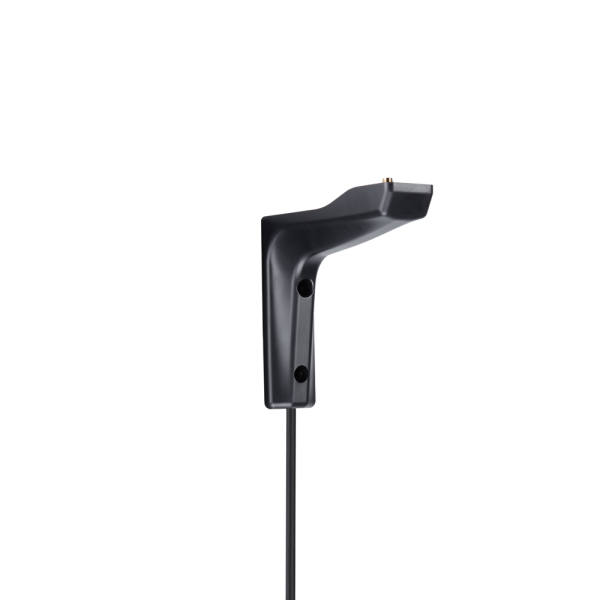

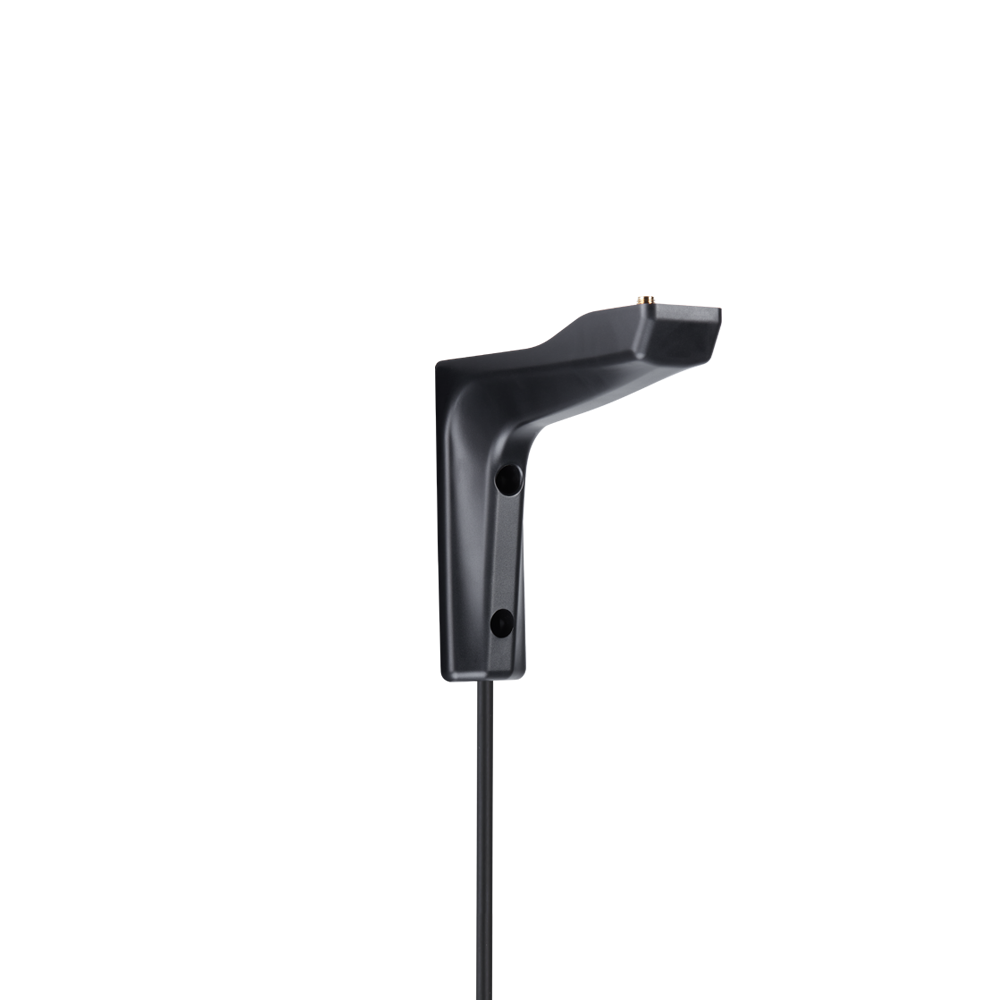

Image WMB.A.SMA.F.305111

WMB.A.SMA.F.305111

SMA Wall Mount Bracket with 3m of Cable

Overview

SMA Wall Mount Bracket with 3m of Cable

The Taoglas WMB.A.SMA.F.305111 Wall Mount Bracket is designed to be compatible to any SMA Male terminated Antenna. The WMB bracket is made from a robust ABS and PC Alloy for installations where strength of installtion is key.

Typical applications include:

– Connected Enterprise
– Smart Industrial
– Warehousing Private Networks
– Building Sites

The WMB.A.SMA.F.305111 is supplied with 3m of low loss TGC-200 cable for optimum performance and terminated with an SMA Male connector, for connections with most industry standard gateways and routers. Customized cable lengths and connectors are readily available, please contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
For Use With/Related Products SMA Connectors
Materials ABS+PC
Length (mm) 123.5
Width (mm) 33
Height (mm) 120
Weight (g) n/a
