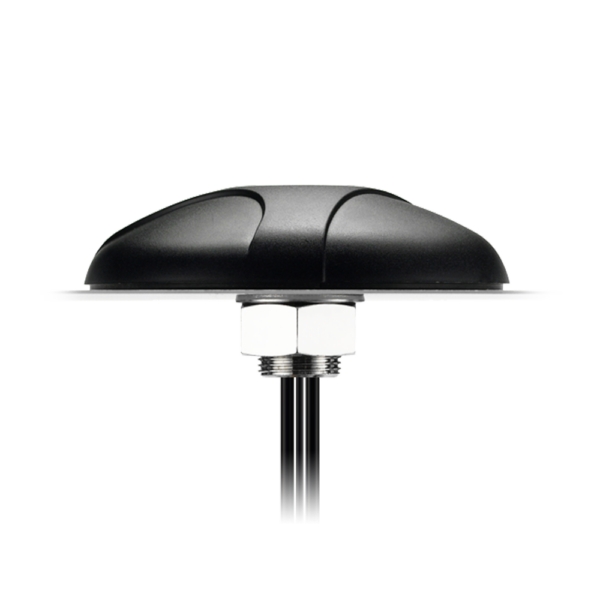

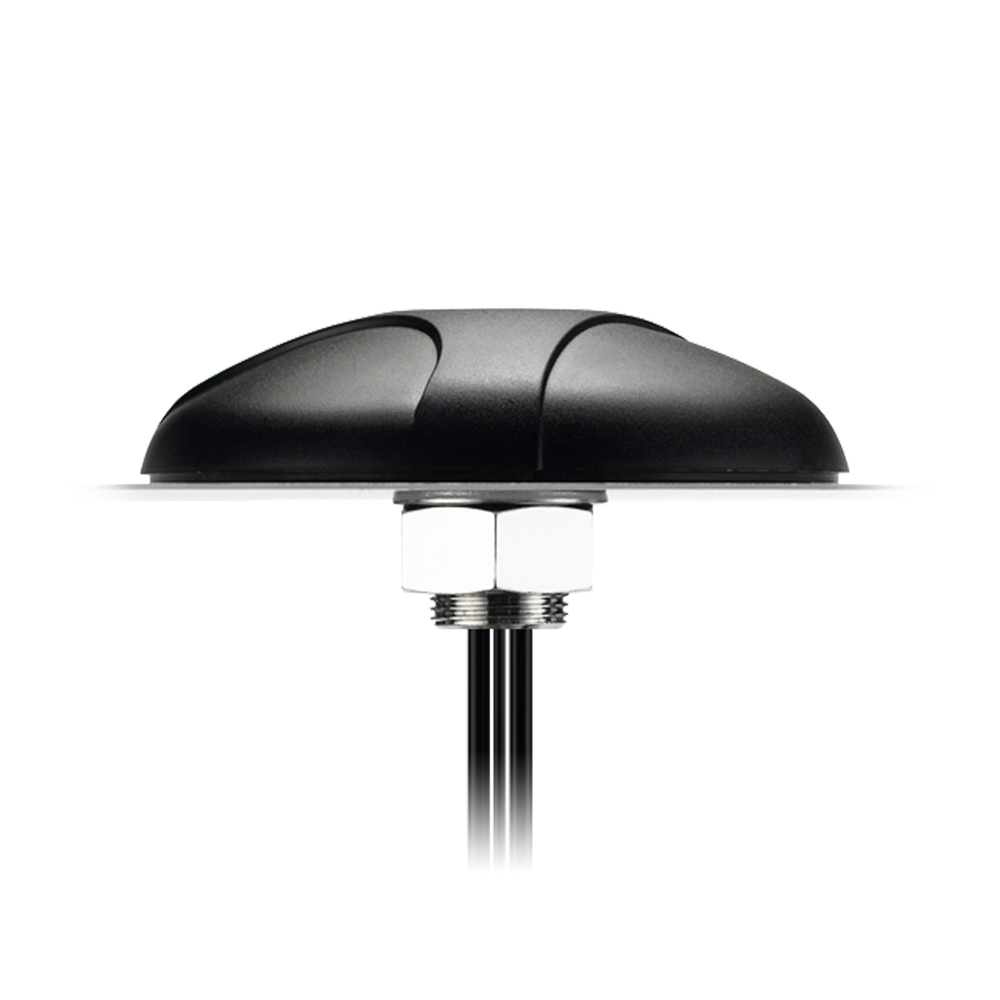

The Spartan MA673 2.4 / 4.9~5.8GHz 3*MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external antenna for use in 802.11ac high data throughput and video broadcast applications. The Spartan is unique in the market because it combines three 2.4 / 4.9~5.8GHz antenna elements in a heavy-duty antenna with high efficiency in a low profile and high quality aesthetic styled housing. The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted. Care has been taken to optimize the isolation at more than 20dB from any one antenna to the other, and radiation patterns are distinct allowing for greater de-correlation, vital factors for optimization of MIMO system efficiency. For industries such as remote monitoring, smart meter systems, construction equipment, public safety at only 40mm high, the Spartan provides an unobtrusive, robust, rugged antenna that is durable even in extreme environments. This specification shows the true performance including 3 meters of cable loss. If cable is shorter antenna performance will increase even more.
Spartan MA673 3in1 Permanent Mount 2.4GHz/5.8GHz 3xMIMO 3M CFD-200
MA673.A.CGH.004Spartan Antenna 3in1 Low Profile Permanent Mount
3 * MIMO 2.4/5.8GHz antenna
2 x vertically polarized elements
1 x horizontally polarized element
Diameter 145.6mm * Height(profile) 35.1mm
Standard Version 3M CFD-200 RP-SMA(M)
No Ground Plane Required
IP67 Waterproof
MA673.A.CGH.004
Spartan MA673 3in1 Permanent Mount 2.4GHz/5.8GHz 3xMIMO 3M CFD-200
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, Combination, Wi-Fi/Bluetooth |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Screw |
| Termination Style | Connector |
| Antenna Connector Type | RP-SMA |
| Cable Type | TGC-200 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 2.4/5.8GHz |
| Connector Polarity | Reverse |
| Cable Length (mm) | 3000 |
| Packaging | Box, Carton |
| VSWR | 0 |
| IP Rating | IP67 |
| RoHS | Yes |
| Gain (Max) | 2.3 |
| Length (mm) | 147.5 |
| Width (mm) | 145.6 |
| Height (mm) | 35.1 |
| Weight (g) | 908 |
