SPKM.36.8.B – 36mm Miniature Speaker 8 Ohm – IP67

SPKM.36.8.B

8 Ohm Impedance
Rated Input Power 1W RMS
Max Input Power 1.5W peak
High Sensitivity
Dimensions: Ø36 x 3.5mm
Connector: Wire Lead
RoHS & Reach Compliant

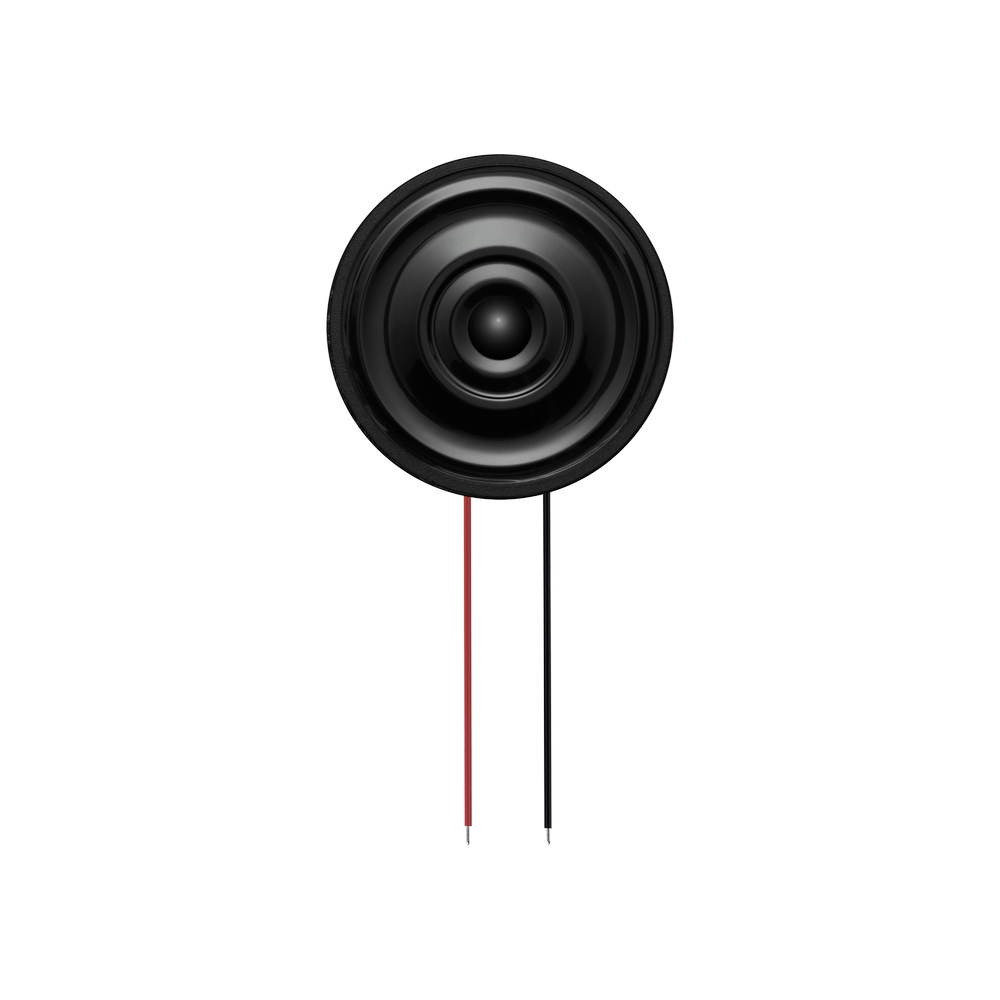

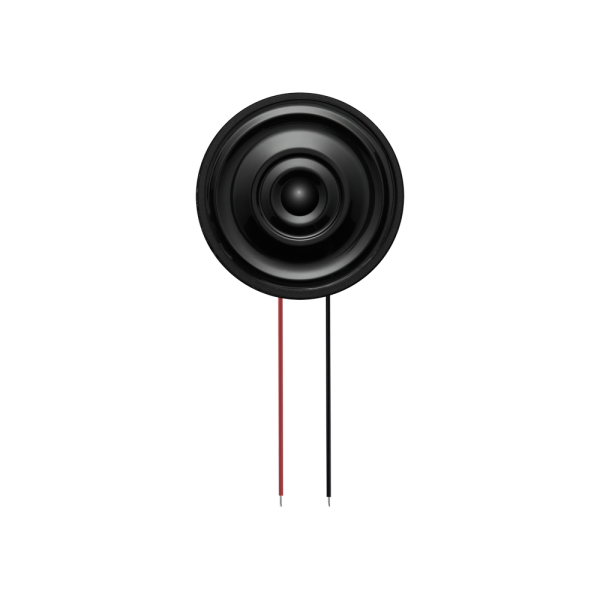

Image SPKM.36.8.B

SPKM.36.8.B

SPKM.36.8.B – 36mm Miniature Speaker 8 Ohm – IP67

Overview

36 mm Miniature Speaker – 8 Ohm – IP67

Taoglas added miniature speakers to our product portfolio to provide both reliable connectivity and high-quality audio solutions from one trusted company. Featuring a compact design, enabling ease of integration in a wide range of electronics products, including IoT devices, with high levels of long-term reliability and best in class performance Taoglas products are known for. Our 36 mm Miniature Speaker offers a frequency response of 100 Hz – 10 kHz, 98dB sensitivity, 8 Ohm impedance and power handling of 1 W RMS and 1.5 W peak. They provide proven performance in demanding applications such as security alarm systems and IoT devices where the accurate reproduction of voice communications is required. Please contact your regional Taoglas customer support team for more information or installation guidelines.

Contact your regional Taoglas customer service team for more information or to discuss our audio services or for customised solutions to suit your device.

Technical Specification
Name Value
Power - Rated 1W
Power - Max 1.5W
Impedance 8
Sensitivity 94 dB @ 0.5 W / 0.1m
Length (mm) 36
Width (mm) 36
Height (mm) 3.5
Weight (g) n/a
