This is a 2in1 combination high performance GPS/GLONASS/GALILEO and Pentaband Cellular (GSM /CDMA/PCS/DCS/ / UMTS / GPRS / EDGE / HSPA) antenna to simplify AVL or Fleet management antenna systems worldwide. Its high quality low profile covert housing can be attached onto the glass or even out of sight under the dashboard. This combination of a high gain GPS/GLONASS/GALILEO antenna and a leading edge penta band cellular antenna is ideal for those applications that require durability, small size and covert installation, and reliable reception and transmission crossing through different mobile networks. The standard version has 3 metres RG174 cable and SMA(M) connector on both GPS/GLONASS/GALILEO and Cellular. The cables and connectors are completely customizable according to customer request.

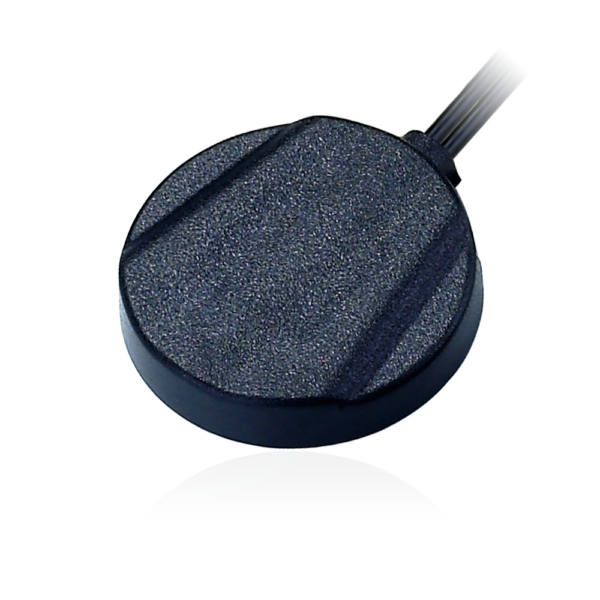

Stingray MA204 2in1 GPS/GLONASS/GALILEO & 3G/2G Adhesive Mount Antenna, SMA(M) Ø55*12mm
MA204.A.LB.002Stingray- Adhesive Glass Mount 2 in 1
GPS-GLONASS/GALILEO 1575-1610MHz 3M RG-174 SMA(M)
2 Stage 28dB Gain Front End SAW Filter
Penta-Band Cellular 800MHz-960MHz/1710MHz-2200MHz 3M RG-174 SMA(M)
High Grade 3M Double Sided Tape
55*51.7*10.8mm
Waterproof IP65 Rated
MA204.A.LB.002
Stingray MA204 2in1 GPS/GLONASS/GALILEO & 3G/2G Adhesive Mount Antenna, SMA(M) Ø55*12mm
Overview
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, Combination |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Adhesive |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Cable Type | RG-174 |
| Connector Body Style | Straight |
| Polarity | Linear |
| Frequency Range | 824 - 2170MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | 3000 |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| IP Rating | IP65 |
| RoHS | Yes |
| Gain (Max) | 1.4 |
| Length (mm) | 55 |
| Width (mm) | 55 |
| Height (mm) | 11.7 |
| Weight (g) | 121 |
