TLS.40.1F11 – Shockwave Direct Mount GPS L1/Galileo E1 Antenna

TLS.40.1F11

Covering Bands:
• GPS L1
• Galileo E1
Connector: N-Type Male
25dB LNA
Wide Input Voltage 1.8V to 5.5V
Dimensions: 79.45 x 42 mm
IP67 Waterproof Rated
RoHS & REACH Compliant

Image TLS.40.1F11

TLS.40.1F11

TLS.40.1F11 – Shockwave Direct Mount GPS L1/Galileo E1 Antenna

Overview

Shockwave Direct Mount GPS L1/Galileo E1 Antenna

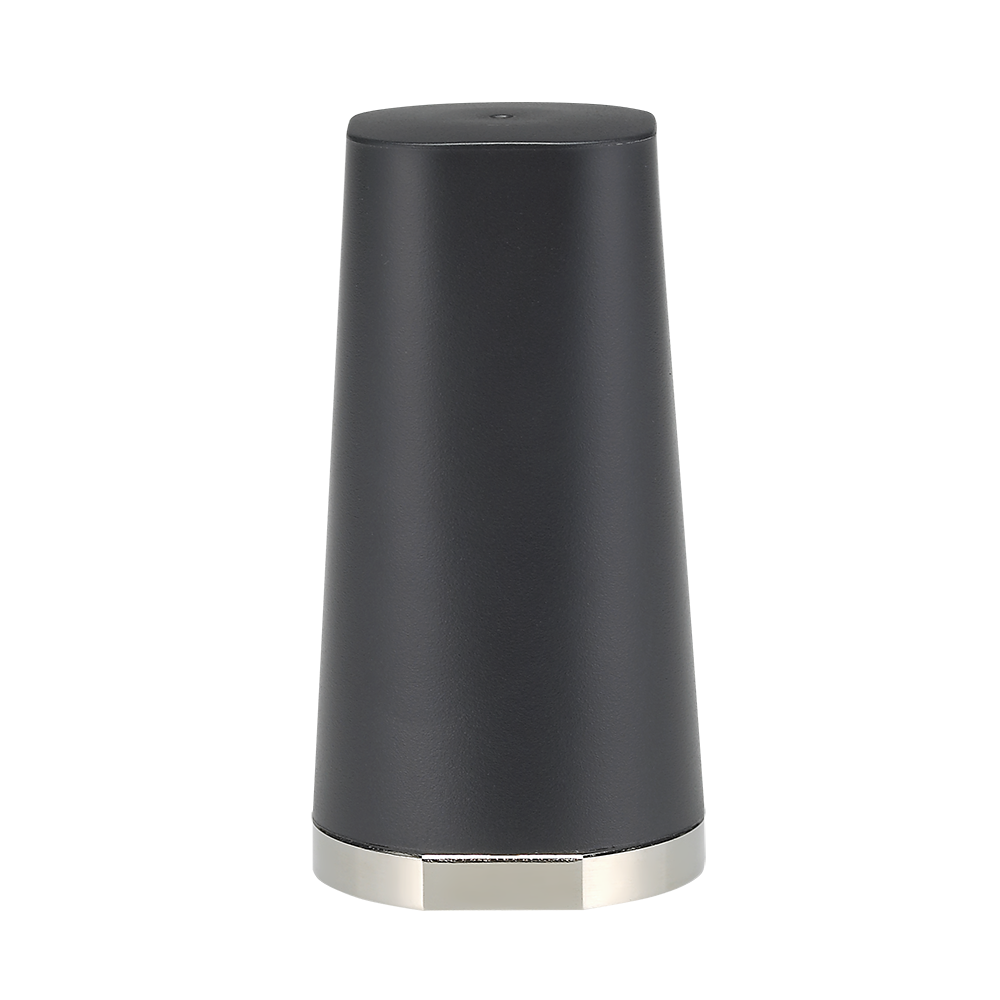

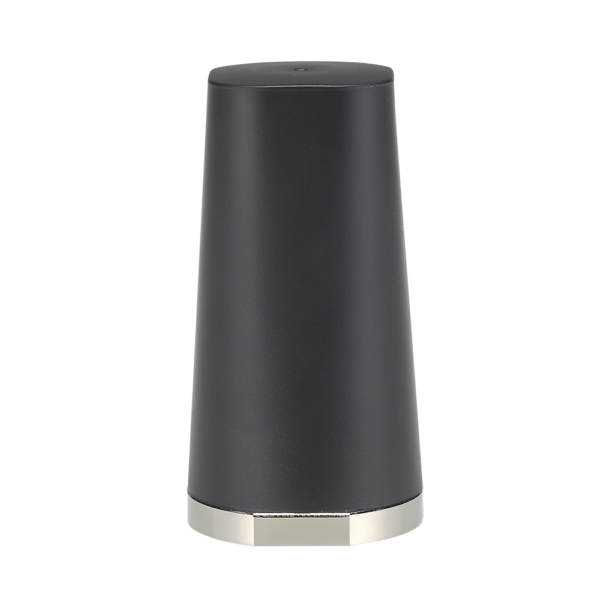

The Shockwave TLS.40.1F11 is a direct mount GPS L1/Galileo E1 antenna designed to be mounted directly onto a device. With a robust external enclosure, the Shockwave antenna is IP67 water resistant meaning it is ideal for some of the harshest applications worldwide.

Typical Applications Include:
– Transportation
– Navigation
– Connected Enterprise
– Remote Asset Tracking

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. A waterproof O-ring around the base prevents water ingress under the antenna.

The connector is customizable subject to NRE and MOQ. For further information please contact your regional Taoglas customer support team.

Technical Specification
Name Value
Antenna Type External Antennas, GNSS
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 70°C
Mounting Style Direct
Termination Style Connector
Antenna Connector Type N Type
Connector Body Style Straight
Polarity Linear
Frequency Range 1575.42MHz
Connector Polarity Reverse
Cable Length (mm) n/a
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 25
GNSS Type Active GNSS
GNSS Bands L1
Length (mm) 42
Width (mm) 41
Height (mm) 79.4
Weight (g) 130
