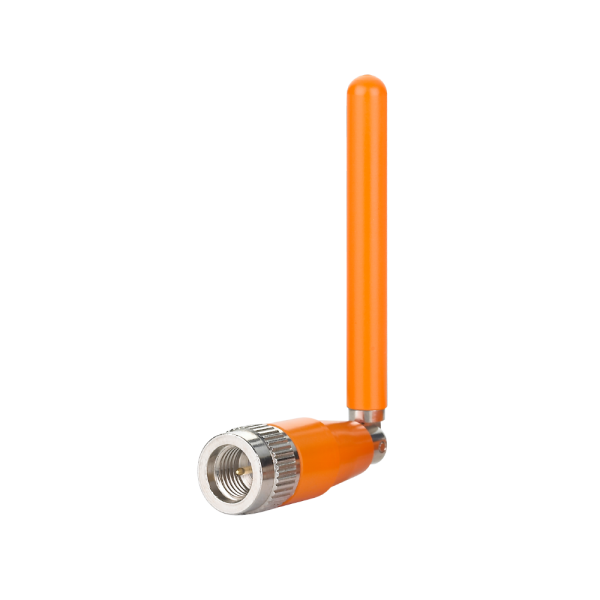

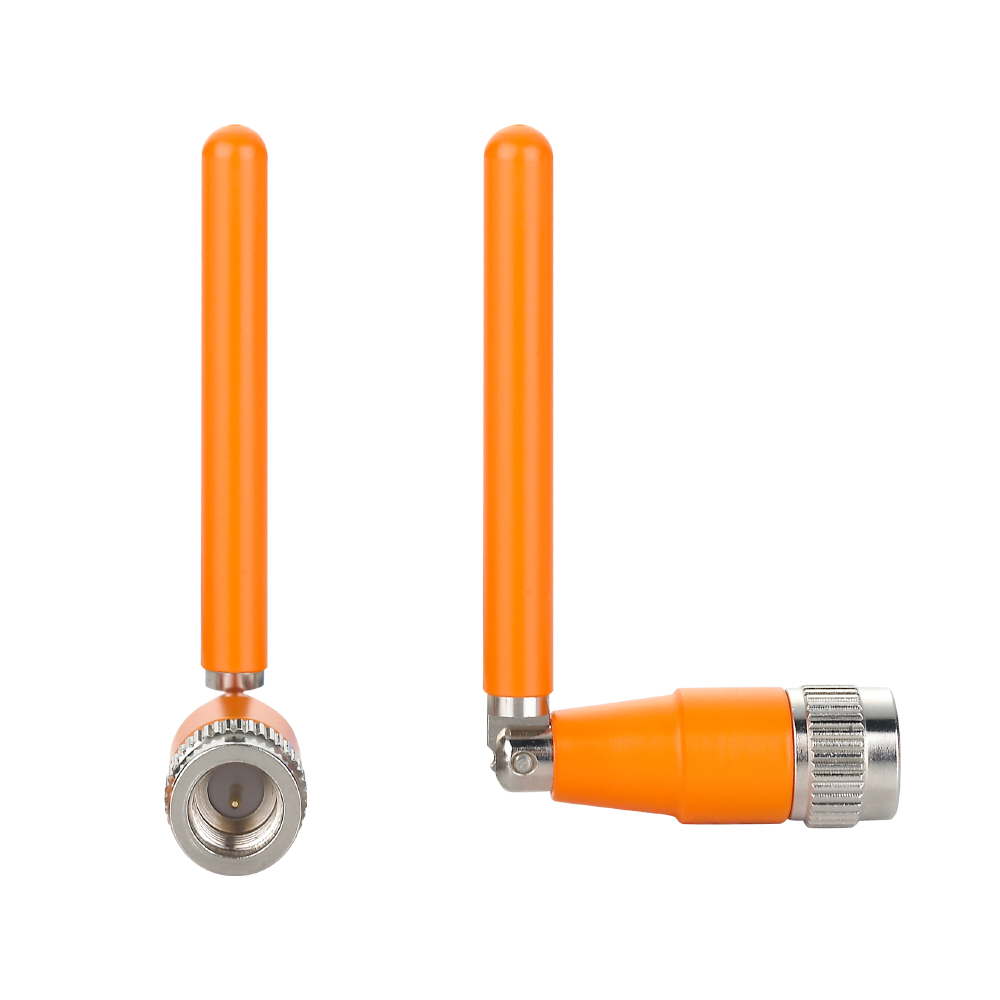

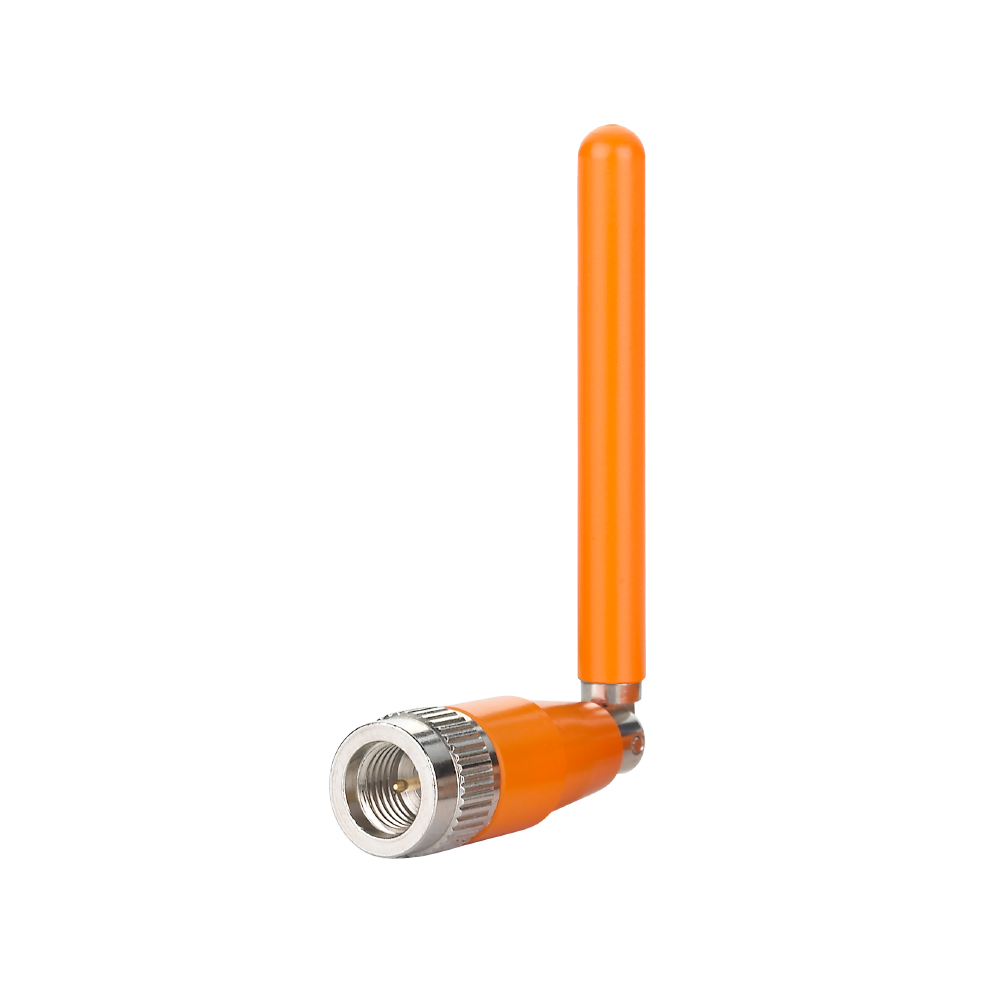

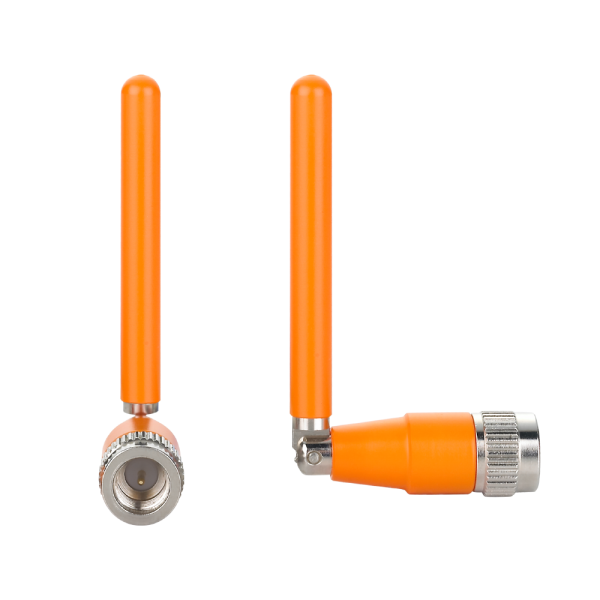

TS.07.0113 GPS/GLONASS/GALILEO/BeiDou Terminal Antenna Hinged SMA(M)
TS.07.0113Passive GPS/GLONASS/GALILEO/BeiDou Monopole Terminal Antenna
Gain BeiDou 4.05dBi / GPS-GALILEO 4.04dBi / GLONASS 3.98dBi (30*30cm metal Ground Plane edge)
Efficiency BeiDou 73.2% / GPS-GALILEO 72.35% / GLONASS 70.81%(30*30cm metal Ground Plane edge)
Rotatable hinge design for optimal reception
SMA(M) Hinged Connector
Dims: H: 72mm, Ø: 10mm
TS.07.0113
TS.07.0113 GPS/GLONASS/GALILEO/BeiDou Terminal Antenna Hinged SMA(M)
Technical Specification
| Name | Value |
|---|---|
| Antenna Type | External Antennas, GNSS |
| Impedance | 50 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Antenna Connector Type | SMA |
| Connector Body Style | Hinged |
| Polarity | Linear |
| Frequency Range | 1559 - 1610MHz |
| Connector Polarity | Normal |
| Cable Length (mm) | n/a |
| Packaging | PE Bag, Carton |
| VSWR | 0 |
| RoHS | Yes |
| Gain (Max) | 4 |
| GNSS Type | Passive GNSS |
| GNSS Bands | L1 |
| Length (mm) | 10 |
| Width (mm) | 10 |
| Height (mm) | 72 |
| Weight (g) | 6 |
