Accura UWB UWCCP.01 6-7 GHz Embedded Linear Polarized SMD Chip Antenna

UWCCP.01

SMD UWB (Ultra Wideband) Chip Antenna
For European and USA UWB Applications
Operates in Channel 5
6.5dBi Peak Gain
Dimensions: 14.3 x 8.35 x 2 mm

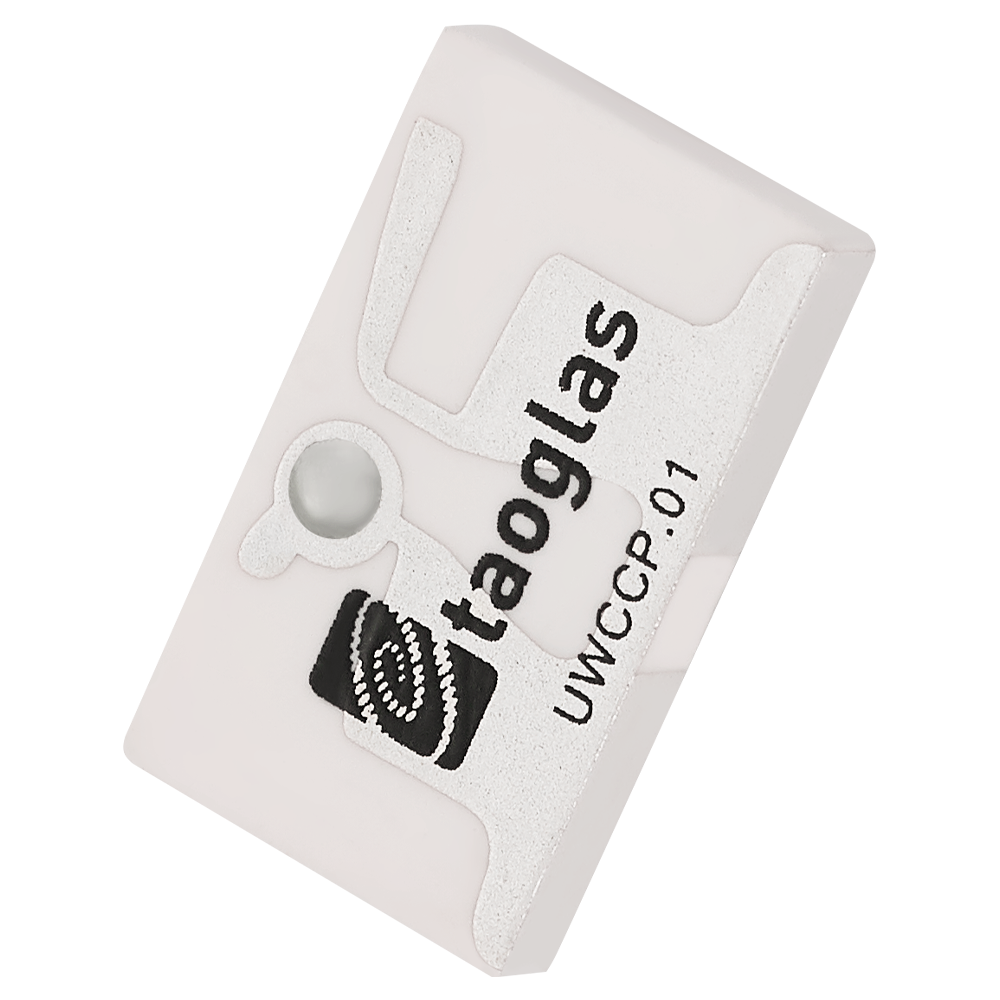

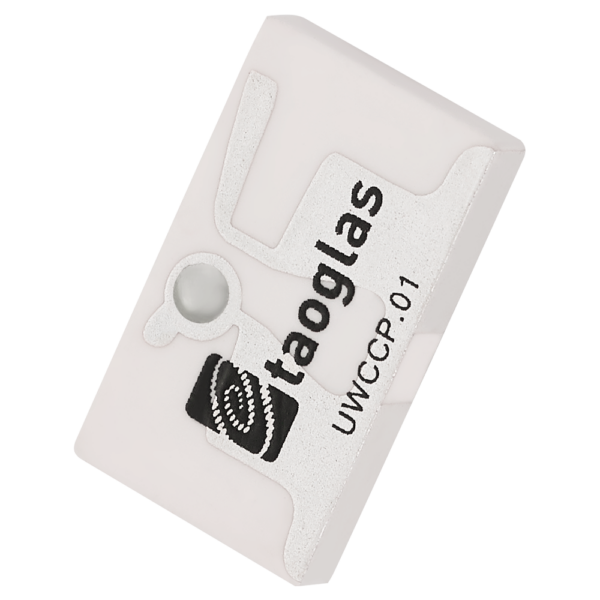

Image UWCCP.01

UWCCP.01

Accura UWB UWCCP.01 6-7 GHz Embedded Linear Polarized SMD Chip Antenna

Overview

The UWCCP.01 chip antenna is a small form factor embedded Ultra-Wideband (UWB) antenna with high efficiencies across the pulsed UWB communications operational channel 5 (6.25 GHz – 6.75 GHz). It is linear polarized and hence very suitable for use in mobile tags in standard Time of Arrival (ToA) and advanced Angle of Arrival (AoA) localization systems. It is mounted to a PCB via standard SMD reflow process.The UWCCP.01 antenna is a durable ceramic antenna that has a peak gain of 6.5dBi, an efficiency of more than 70% across channel 5 and is designed to be mounted directly onto a PCB. It is an ideal choice for any device maker that needs to keep manufacturing costs down over the lifetime of a product. Like all such antennas, care should be taken to mount the antenna at least 3mm from metal components or surfaces, and ideally 5mm for best radiation efficiency.

Technical Specification
Name Value
RoHS Yes
Antenna Type Embedded Antennas, UWB
Mechanical Style Patch
Gain (Max) 6.5
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style SMD/SMT
Termination Style SMD/SMT
Connector Body Style Straight
Polarity Circular
Frequency Range 6240MHz - 6740MHz
Connector Polarity Normal
Cable Length (mm) n/a
Packaging PE Bag, Carton
VSWR 0
Length (mm) 14.13
Width (mm) 8.35
Height (mm) 2
Weight (g) 1
