Venti FXP522 Wi-Fi® including Wi-Fi® 6 Flex PCB 2xMIMO 100mm Ø1.13mm, I-PEX MHF® (U.FL)

FXP522.A.07.A.001

Venti 2.4/5.8/7.125GHz Wi-Fi® including Wi-Fi® 6 Flexible PCB 2 Port MIMO Antenna
2400-2500MHz/5150-5850MHz
I-PEX MHF® I (U.FL comp) – 100mm Ø1.13mm
Dimensions: 80*20*0.15mm

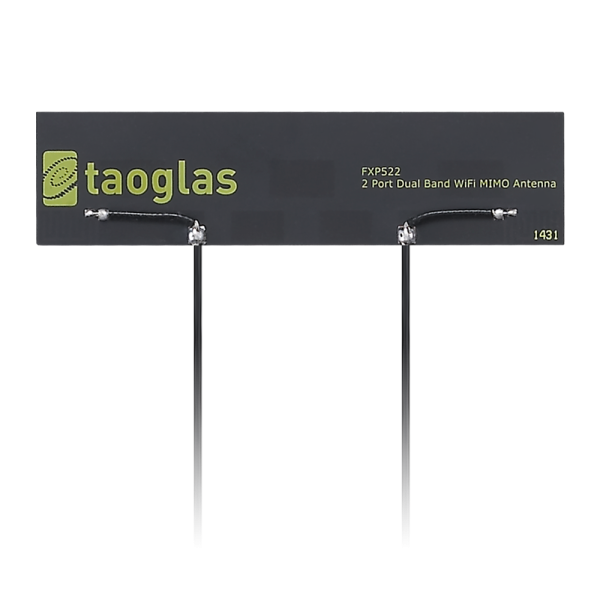

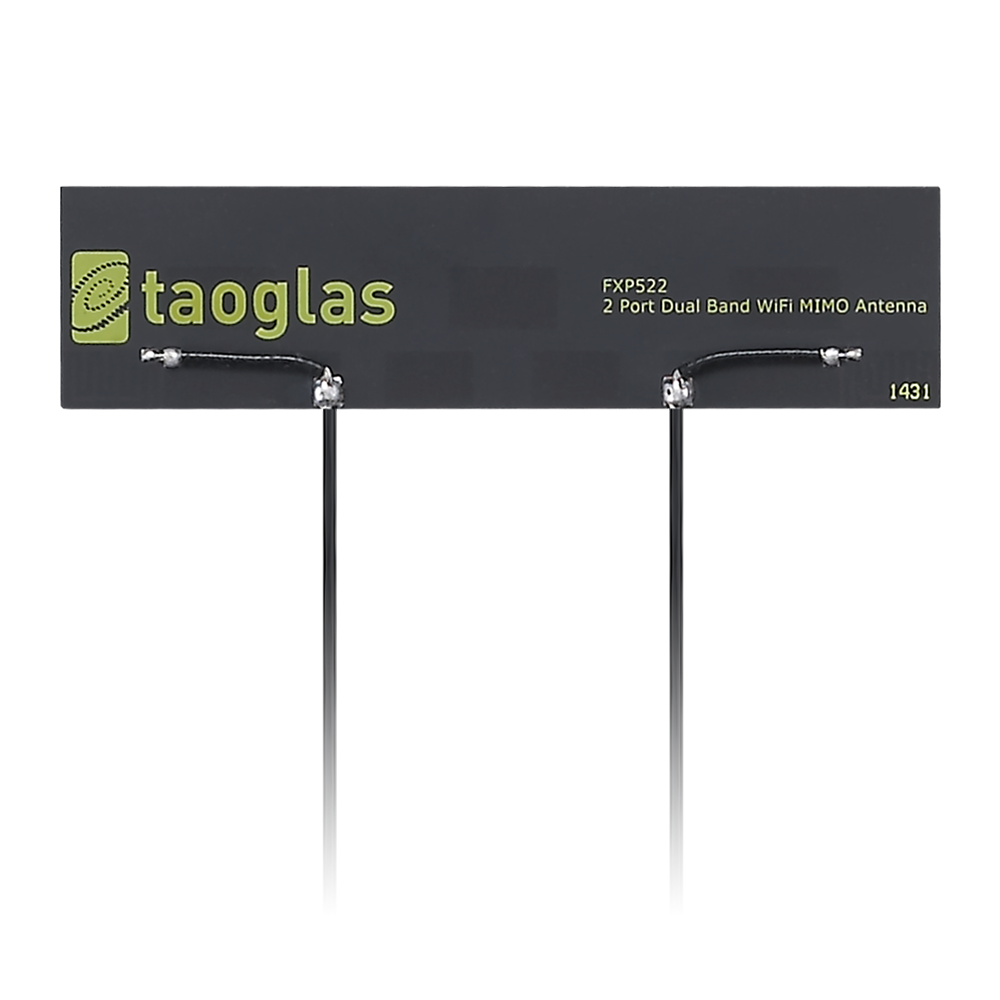

Image FXP522.A.07.A.001

FXP522.A.07.A.001

Venti FXP522 Wi-Fi® including Wi-Fi® 6 Flex PCB 2xMIMO 100mm Ø1.13mm, I-PEX MHF® (U.FL)

Overview

The FXP522 Venti antenna is a 2* MIMO, flexible embedded monopole type antenna designed to be used inside high speed devices on modern Wi-Fi® networks, including new Wi-Fi® 6 and extended Wi-Fi® networks.

Applications
– High speed HD video streaming
– High capacity mass transit communication networks

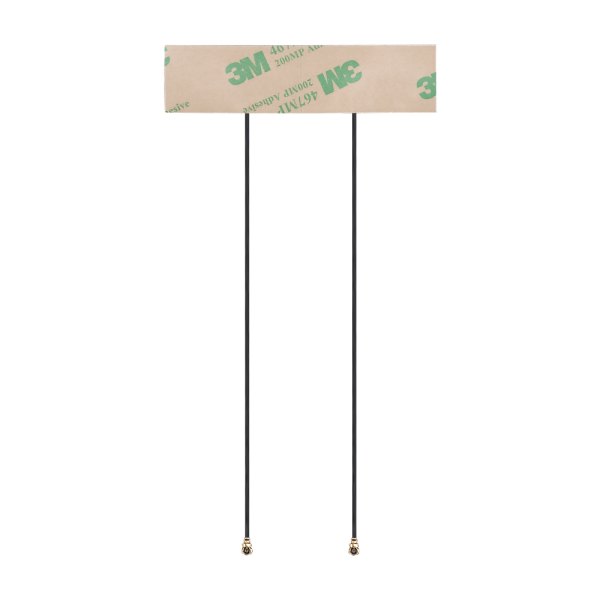

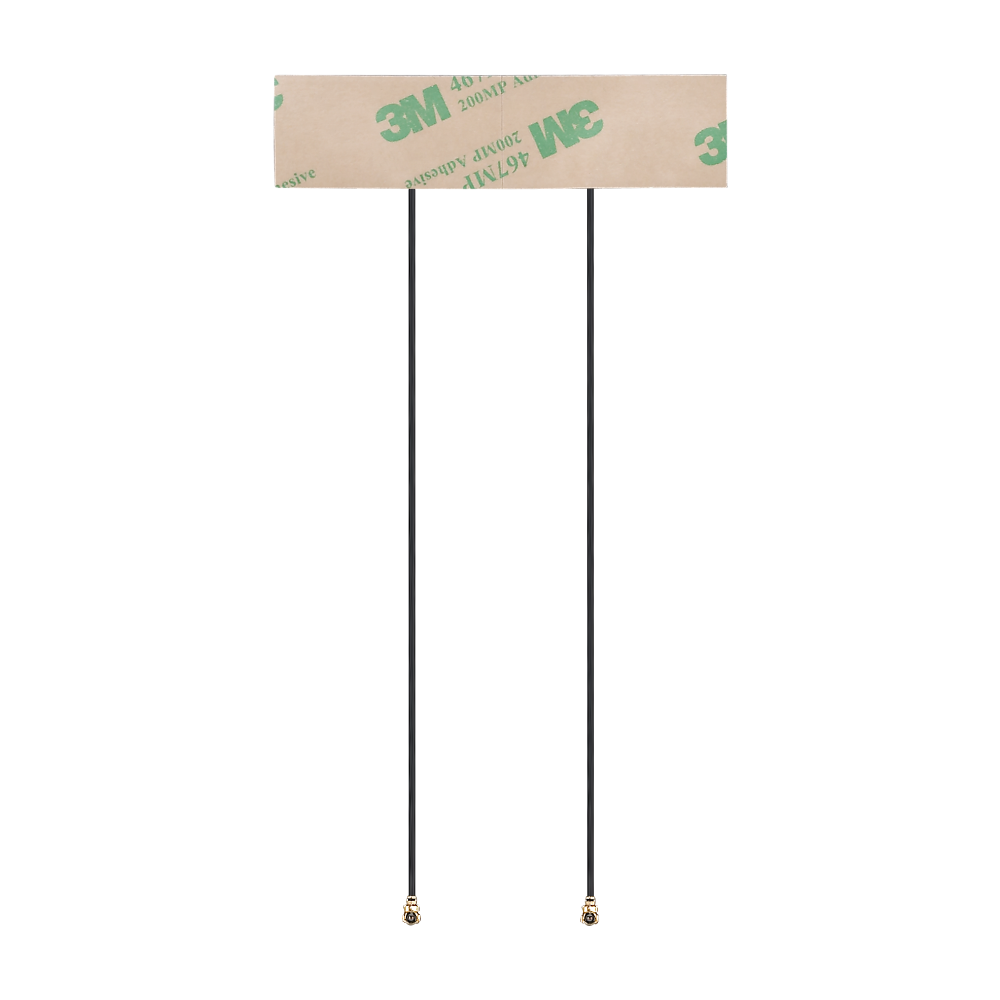

Omni-directional, the antenna has excellent efficiency and isolation performance for Wi-Fi® applications. With a thickness of only 0.15mm, the FXP.522 is an ideal solution for maintaining high performance while fitting into narrow spaces such as plastic enclosures for routers, gateways, set-top boxes and other Wi-Fi® applications. the FXP.522 was specifically tuned on ABS plastic, ensuring reliable performance on PC and ABS housings. The antenna has been designed on a flexible polymer with a rectangular form-factor and cable connection for an easy installation. The antenna comes with double-sided 3M tape for easy “peel and stick” mounting.

The antenna cables feature IPEX MHF(U.FL) connectors for easy installation. In order to comply with some module FCC requirements, peak gain can be reduced by using longer cable lengths or when tested in actual device environment.

Many module manufacturers specify peak gain limits for any antennas that are to be connected to that module. Those peak gain limits are based on free-space conditions. In practice, the peak gain of an antenna tested in free-space can degrade by at least 1 or 2dBi when put inside a device. So ideally you should go for a slightly higher peak gain antenna than mentioned on the module specification to compensate for this effect, giving you better performance.

Upon testing of any of our antennas with your device and a selection of appropriate layout, integration technique, or cable, Taoglas can make sure any of our antennas’ peak gain will be below the peak gain limits. Taoglas can then issue a specification and/or report for the selected antenna in your device that will clearly show it complying with the peak gain limits, so you can be assured you are meeting regulatory requirements for that module.

For example, a module manufacturer may state that the antenna must have less than 2dBi peak gain, but you don’t need to select an embedded antenna that has a peak gain of less than 2dBi in free-space. This will give you a less optimized solution. It is better to go for a slightly higher free-space peak gain of 3dBi or more if available. Once that antenna gets integrated into your device, performance will degrade below this 2dBi peak gain due to the effects of GND plane, surrounding components, and device housing. If you want to be absolutely sure, contact Taoglas and we will test. Choosing a Taoglas antenna with a higher peak gain than what is specified by the module manufacturer and enlisting our help will ensure you are getting the best performance possible without exceeding the peak gain limits. Customized cable lengths and connector versions can be supplied Contact a Taoglas regional support center for support.

Technical Specification
Name Value
Antenna Type Embedded Antennas, Wi-Fi®/Bluetooth®, Combination
Wi-Fi Bands 2.4/5.8/7.125GHz
Mechanical Style Flex PCB
Impedance 50
Minimum Operating Temperature -40
Maximum Operating Temperature 85
Mounting Style Adhesive
Termination Style Connector
Antenna Connector Type I-PEX MHFI
Length (mm) 80
Width (mm) 20
Height (mm) 0.15
Cable Type 1.13 Coax
Connector Body Style Straight
Polarity Linear
Frequency Range 2.4/5.8/7.125GHz
Connector Polarity Normal
Cable Length (mm) 100
VSWR 2:1
Weight (g) 8
RoHS Yes
Gain (Max) 6.4
