New Released Aug 27, 2024

White Guardian 8in1 Multi-Mount 1*Multi-Band GNSS, 4*5G/4G MIMO and 3*Wi-Fi MIMO

MA998.W.001

Low-profile Housing with Adhesive pad and wall bracket included
1* GNSS (L1/L5)
4* 5G/4G MIMO 600MHz – 6GHz
3* Wi-Fi MIMO 2.4GHz/5.8/7.125 GHz
IP67 Waterproof Enclosure
Dimensions: 146mm * 136m * 20mm
Cables: 2m Low Loss TGC-302 and RG-174
Connectors: SMA(M)/RP-SMA(M)
RoHS & REACH Compliant

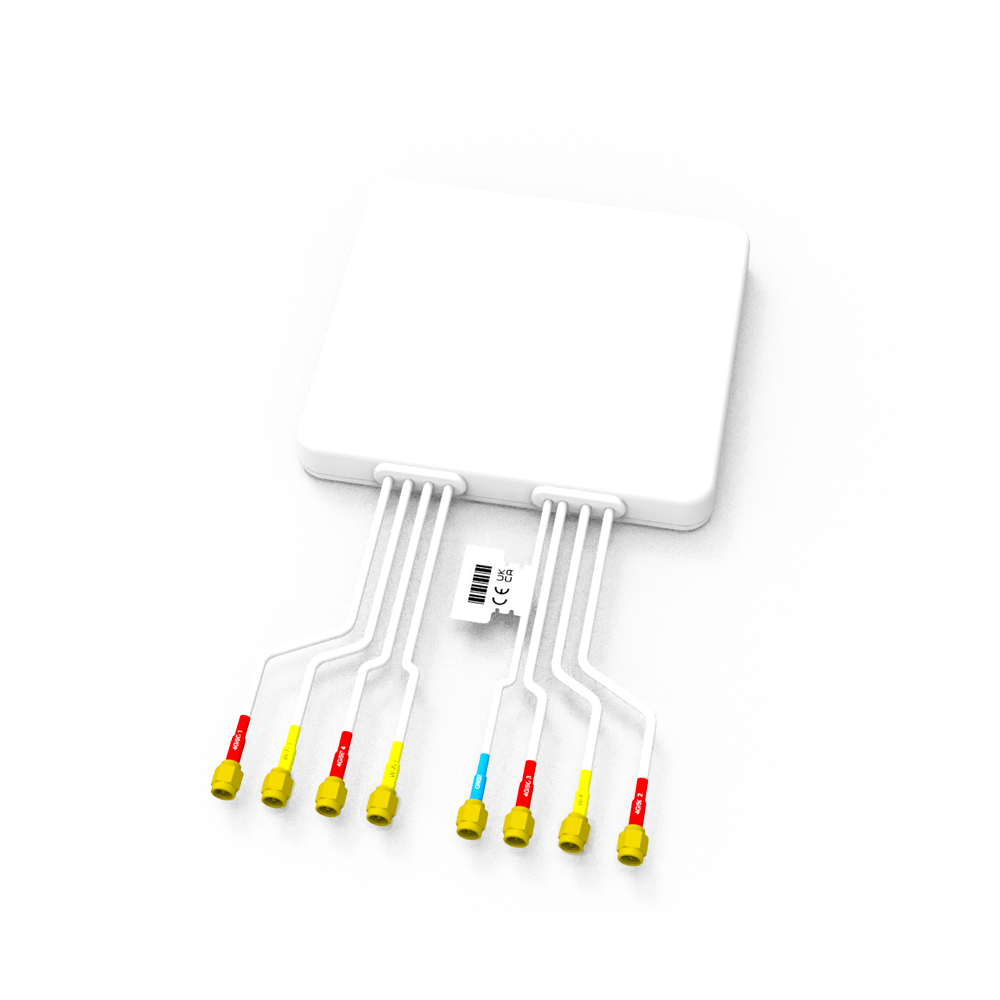

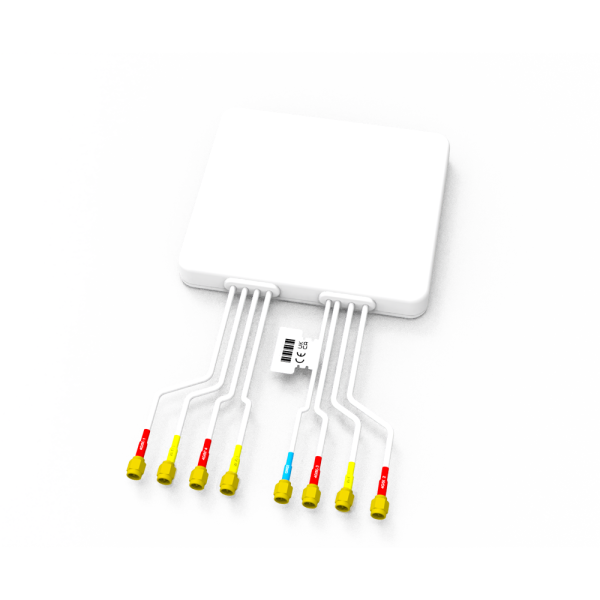

Image MA998.W.001

MA998.W.001

White Guardian 8in1 Multi-Mount 1*Multi-Band GNSS, 4*5G/4G MIMO and 3*Wi-Fi MIMO

Overview

White Guardian 8in1 Multi-Mount 1*Multi-Band GNSS, 4*5G/4G MIMO and 3*Wi-Fi MIMO

The Taoglas MA998 Guardian Series has been designed to be the smallest, high-performance combination panel antenna in the world. The heavy-duty, IP67 rated, external enclosure combines all 8 antenna elements in a low profile, compact form. The Guardian combines 1x GNSS, 4x 5G/4G Cellular antennas and 3x Wi-Fi 6 antennas making it compatible with the next generation of modules and routers.

The MA998 has been designed as a low-profile solution for IoT and Automotive applications where space is at a premium allowing it to be installed in the headliners of vehicles or on the back window of a vehicle. The Guardian series is an ideal external combination antenna solution that can be used where drilling a hole through the roof of a vehicle or a metal panel for an external antenna is not feasible or desired.

Typical applications include:

  • Passenger Bus and Rail Applications
  • Automotive and Heavy Equipment
  • Vehicle Tracking and Telematics
  • First Responder and Emergency Services
  • HPUE applications such as Public Safety Communications and Critical Infrastructure and Utilities

The Guardian can be adhesive, or wall mounted as standard. The adhesive pad and wall bracket are included in the product packaging. Pole and desk mount option are also available as separate kits.

Taoglas also provides services to ensure optimum overall performance for your entire system by working closely with the customer to design in the best antenna and potential additional components for your system. 5G/4G applications demand high-speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges.

Taoglas also takes care to ensure high isolation between the MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over longer cable lengths. In contrast, smaller MIMO antennas with poor quality thin cables will have reduced efficiency and isolation, which would lead to a large drop in system throughput, increased incidences of signal drops, and may indeed not make a system connection at all.

Cable type and length, and connectors are fully customizable, and the Guardian can also be customized for other configurations. It is also available in black (MA998.A.001). Contact your regional Taoglas customer support team for more information.

Technical Specification
Name Value
Antenna Type External Antennas, Combination
Impedance 50
Minimum Operating Temperature -40°C
Maximum Operating Temperature 85°C
Mounting Style Multi-Mount
Termination Style Connector
Antenna Connector Type SMA
Cable Type TGC-302
Connector Body Style Straight
Polarity Linear
Frequency Range 600-6000MHz
Connector Polarity Normal
Cable Length (mm) 2000
Packaging Box, Carton
VSWR 0
IP Rating IP67
RoHS Yes
Gain (Max) 7.42
Length (mm) 146
Width (mm) 136
Height (mm) 20
Weight (g) 800
