STMicroelectronics has partnered with Taoglas, a top provider of high-performance antennas, to enhance the reliability of your wireless connectivity solutions. This collaboration guarantees seamless integration of essential components across various applications. By merging ST’s advanced processing and communication technologies with Taoglas’ industry-leading antennas, developers benefit from a simplified design process and future-proof connectivity solutions.
STMicroelectronics Antenna Reference Guide

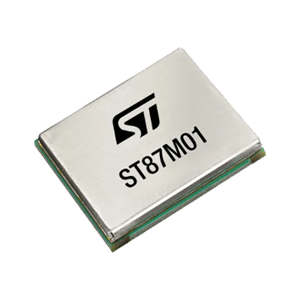

ST87M01
RF Family/Standard: Cellular
Protocol: NB-IoT
| # | Taoglas PN | Image | Description | Connector | Connection | Mount | Type | Placement | ST87M01 |
|---|---|---|---|---|---|---|---|---|---|
| 0 | PCS.55.A |
|
PCS.55.A – Small FR4 Wideband 4G LTE Antenna | 61212 | |||||
| 1 | DSGP.1575.18.4.A.02 |
|
DSGP.1575.18.4 18*18*4mm GPS L1 & GALILEO E1 Ceramic Patch | Solder Mount | GNSS Separate Antennas | Embedded | 61212 | ||
| 2 | PCS.06.A |
|
Havok PCS.06 4G/3G/2G Low Profile SMD Antenna | Solder Mount | 5G/4G Separate Antennas | Embedded | 61212 | ||
| 3 | PA.711.A |
|
Warrior PA.711.A Wideband 4G/3G/2G SMD PIFA Antenna 40*6*5mm | Surface | 5G/4G Separate Antennas | 61212 | |||
| 4 | GGBLA.01.A |
|
Unifier GGBLA.01 GPS/GLONASS/GALILEO/BeiDou Ceramic Loop Antenna 3.2*1.6*0.5mm | Surface | GNSS Separate Antennas | Embedded | 61212 |
